Driver Seat Adjuster Memory Switch Replacement

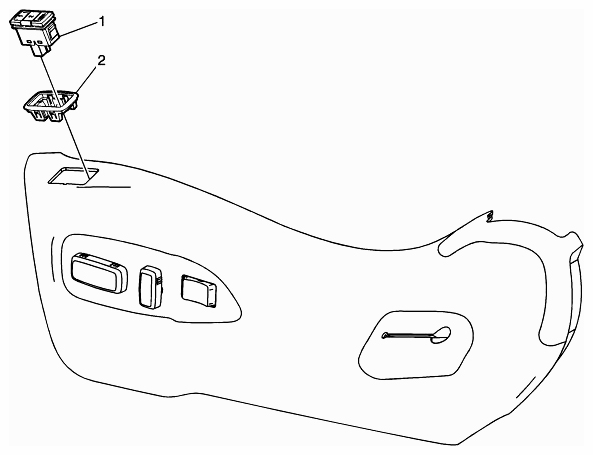

Fig 1: Identifying Driver Seat Adjuster Memory Switch And Bezel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedures  Remove the driver or passenger seat outer adjuster finish cover. Refer to DRIVER OR PASSENGER SEAT OUTER ADJUSTER FINISH COVER REPLACEMENT .
1	Driver Seat Adjuster Memory Switch Procedure  Pull up gently on the memory switch to disengage it from the bezel.
2	Driver Seat Adjuster Memory Switch Bezel Procedure  Use a flat-bladed tool to release the bezel from the outer recliner cover.
