Theft Deterrent Sensor Replacement

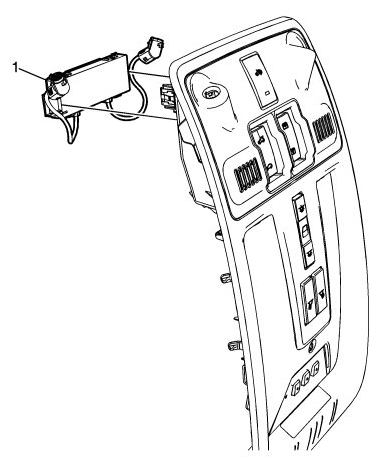

Fig 1: Identifying Theft Deterrent Sensor
G09401992Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedures
Remove the roof console. Refer to ROOF CONSOLE REPLACEMENT .
1 Theft Deterrent Sensor
Procedure
  1. Disconnect the electrical connectors.
  2. Refer to CONTROL MODULE REFERENCES for programming and set-up procedures.
