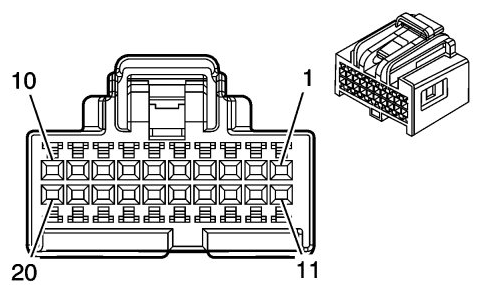

K84 Keyless Entry Control Module X1 Connector End View
K84 KEYLESS ENTRY CONTROL MODULE X1
| Pin | Size | Color | Circuit | Feature | Option |
|---|---|---|---|---|---|
| 1-2 | - | - | - | Not used | - |
| 3 | 0.35 | D-GN | 5060 | Low Speed GMLAN Serial Data | - |
| 4-10 | - | - | - | Not used | - |
| 11 | 0.35 | L-GN/BK | 3558 | Passive Start Switch Signal 2 | - |
| 12 | 0.35 | GY/BK | 3559 | Low Reference | - |
| 13-14 | - | - | - | Not used | - |
| 15 | 0.35 | PK/BK | 3555 | Passive Start Interior Antenna 2 Signal Lo | - |
| 16 | 0.35 | BN/BK | 3552 | Passive Start Interior Antenna 1 Signal Hi | - |
| 17 | 0.35 | WH | 3553 | Passive Start Interior Antenna 1 Signal Lo | - |
| 18 | 0.35 | L-GN | 3556 | Passive Start Interior Antenna 3 Signal Hi | - |
| 19 | 0.35 | D-GN | 3557 | Passive Start Interior Antenna 3 Signal Lo | - |
| 20 | 0.35 | D-BU | 3554 | Passive Start Interior Antenna 2 Signal Hi | - |
Connector Part Information
- Harness Type: Body
- OEM Connector: 13782499
- Service Connector: 13578570
- Description: 20-Way F Micro HVT Series (BK)
Terminal Part Information
- Terminated Lead: 13575550
- Release Tool: J-38125-559
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
