Connected components
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

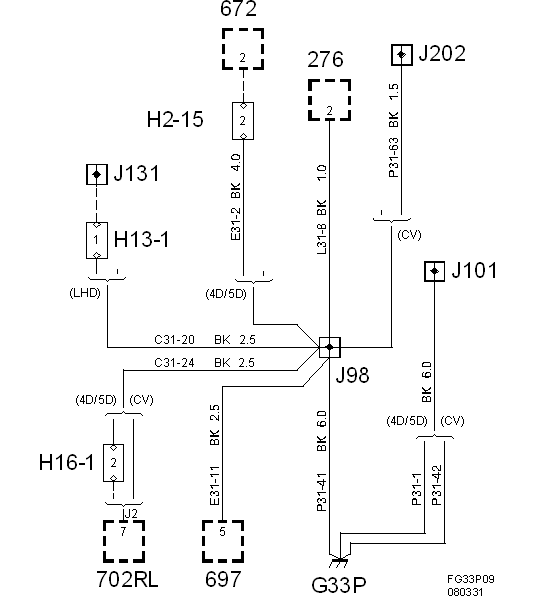

GROUNDING POINT G33P REFERENCE
| Via Crimp J98, main wiring harness | |
| 276 | Bonnet switch, anti-theft alarm |
| 410 | Heating element, fuel filter |
| 697 | Fuel pump control module |
| 702RL | Rear left door module, (RLDM) |
| Via Crimp J131, outer door wiring harness in front left door, which is connected to crimp J98 | |
| 207FL | Heating element, left-hand door mirror |
| 702FL | Control module, front left door |
| Via Crimp J202, main wiring harness CV which is then connected with J98 | |
| 50 | Lamp, roof lighting |
| 225 | Reading lamp |
| 359LH/RH | Lamp, make-up mirror lighting |
| 681 | Rear-view mirror, interior |
| Via Crimp J101, main wiring harness | |
| 64FL | Heating pad seat, left |
| 357 | Switches, left electrically adjustable seat |
| 357Dk (LHD) | Control module, driver's seat |
| 357m (LHD) | Motor, air pump, lumbar support (CV) |
| 357v (LHD) | Lumbar support valve (CV) |
| 741FL | Microswitch for backrest, locked in upright position, left seat |
| CV: Via Crimp J167, seat harness , which in turn is connected with crimp J101 | |
| 357 | Switches, left electrically adjustable seat |
| 357r (LH) | Relay unit, seat (CV) |
