Crimp connection J348, main harness: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 150 mm from branching point amplifier unit (K2) towards rear electrical centre (REC).

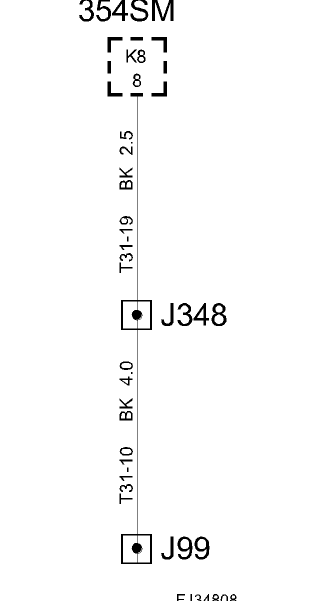

Fig 1: Crimp Connection J348 - Main Harness
G05549381Courtesy of SAAB-SCANIA OF AMERICA, INC.
