Crimp connection J124, main harness: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  In amplifier branching (354)

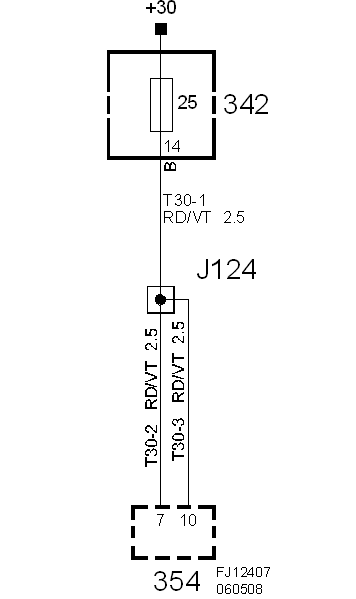

Fig 1: Crimp Connection J124 - Main Harness
G05549375Courtesy of SAAB-SCANIA OF AMERICA, INC.
