Grounding point G34S: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

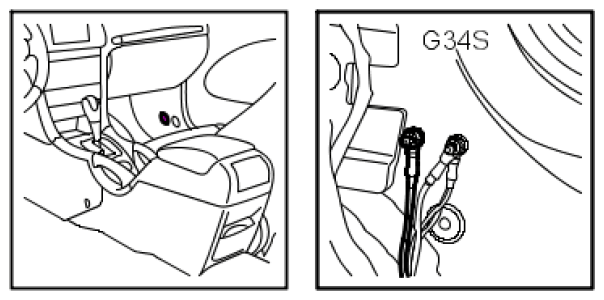

Fig 1: Identifying Grounding Point G34S
G05173117Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  At the floor below the right A-pillar (BK/WH cable)

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.
