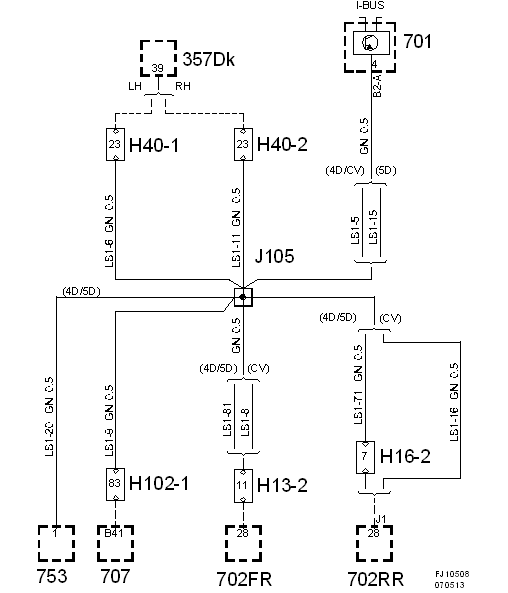

Crimp connection J105, main harness: Notes
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
4D/5D:
Approx. 290 mm from branching of grounding point G14 towards airbag control module
CV:
Approx. 320 mm from branching to grounding point G14 towards the airbag control module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
