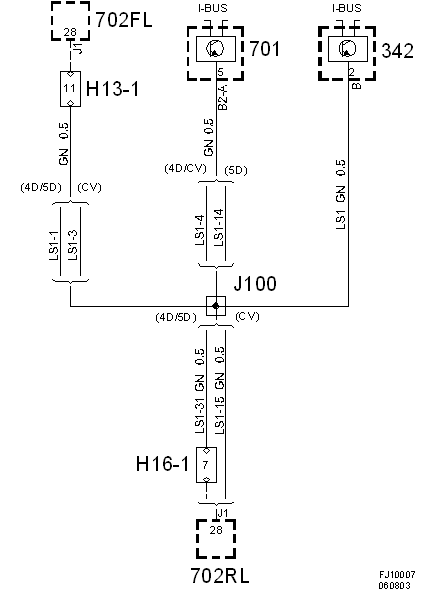

Crimp connection J100, main harness: Notes
WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
4D/5D: Approx. 10 mm from branching of seat-belt tensioner, left B-pillar towards the left A-pillar
CV: Approx. 40 mm from branching point to the side crash sensor by the LH B-pillar towards the LH window control module
