Crimp J233, adapter harness, Simtec: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 225 mm from branching of grounding point G7 towards the starter motor

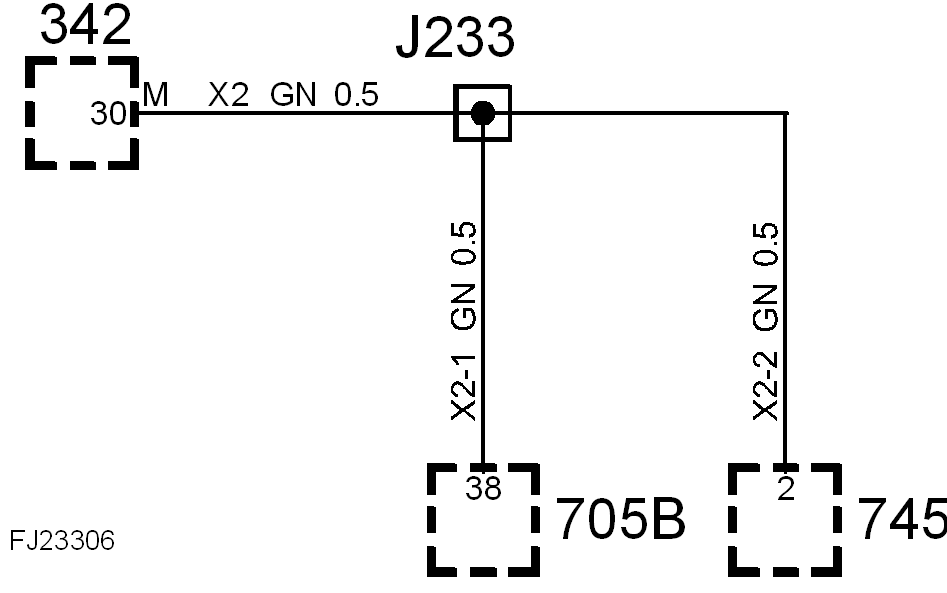

Fig 1: Crimp J233, Adapter Harness, Simtec - Circuit Diagram
G05173113Courtesy of SAAB-SCANIA OF AMERICA, INC.
