Manual headlamp adjustment, main components

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

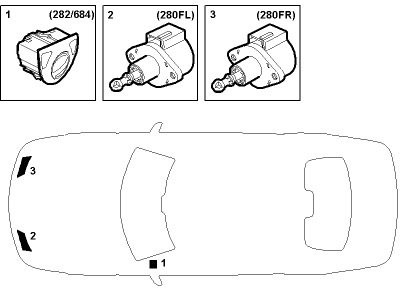

Fig 1: Identifying Manual Headlamp Adjustment Components
G05551269Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Switch, headlamp levelling (282/684)
  2. Motor, headlamp levelling, left (280/663FL)
  3. Motor, headlamp levelling, right (280/663FR)
