Adaptive forward lighting (AFL), main components

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

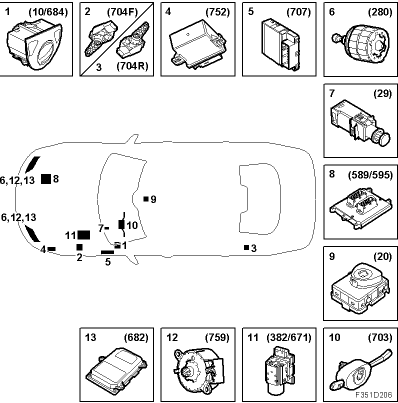

Fig 1: Identifying Adaptive Forward Lighting (AFL) Components
G05551289Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unit, light switch (10/684)
  2. Tilt sensor, load, front (704F)
  3. Tilt sensor, load, rear (704R)
  4. AFL control module (752)
  5. Body Control Module, BCM (707)
  6. Motor, headlamp adjustment (280)
  7. Brake light switch (29)
  8. Engine Control Module (ECM)
  9. Unit, ignition switch, ISM (20)
  10. Column Integration Module, CIM (703)
  11. Control module, TCS/ESP (382/671)
  12. Stepper motor, AFL (759)
  13. Electronics unit, AFL (682)
