Grounding point G29: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location

4D:  In luggage compartment below the right light cluster.

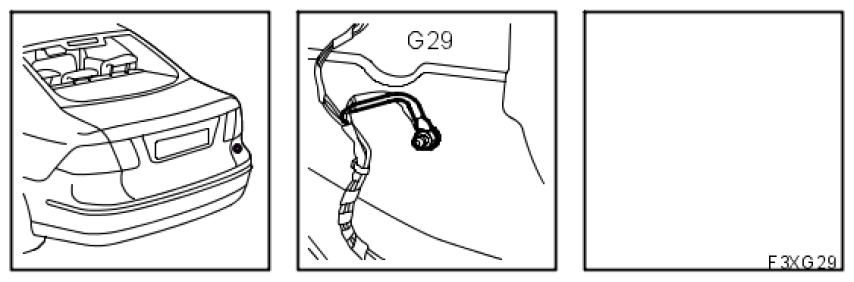

Fig 1: Identifying Grounding Point G29, 4D Location
G05568245Courtesy of SAAB-SCANIA OF AMERICA, INC.

4D

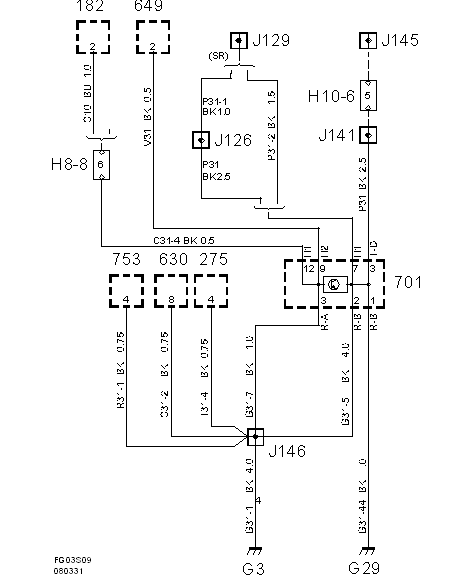

Fig 2: Grounding Point G29, 4D - Circuit Diagram
G05550951Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D:  On right-hand rear luggage compartment floor support.

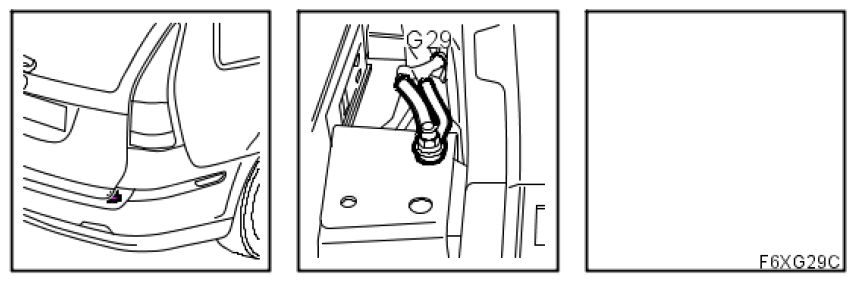

Fig 3: Identifying Grounding Point G29, 5D Location
G05570981Courtesy of SAAB-SCANIA OF AMERICA, INC.
