Crimp connection J111, main harness: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:

4D/CV:  --

5D:  In the branching of connector H102-1

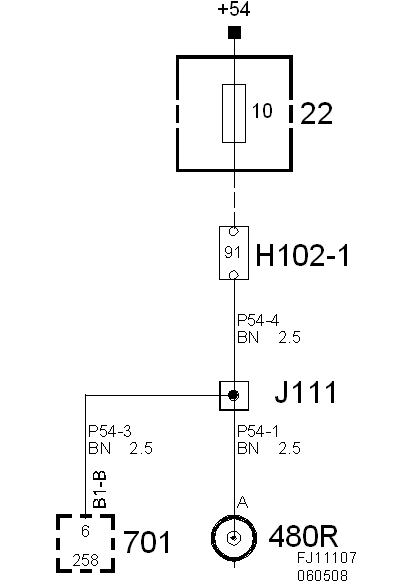

Fig 1: Crimp Connection J111, Main Harness - Circuit Diagram
G05550917Courtesy of SAAB-SCANIA OF AMERICA, INC.
