Crimp J18, front harness: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approx. 140 mm from contact of left headlamp

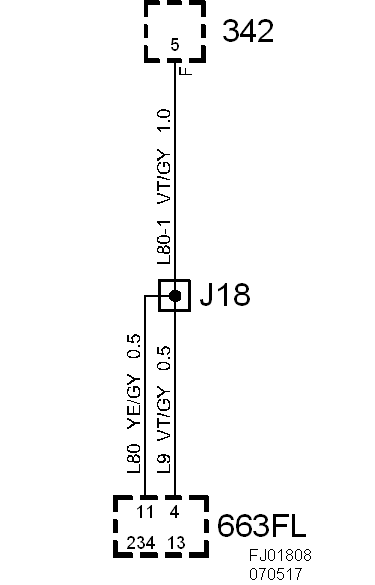

Fig 1: Crimp J18, Front Harness - Circuit Diagram
G05550907Courtesy of SAAB-SCANIA OF AMERICA, INC.
