Instrument panel electrical centre 22 (IPEC): Connect

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The 16 pin connector from the BCM 707 control module is connected directly to the electrical centre.

The electrical centre is fed with +30 voltage from the engine bay electrical centre 342 and is connected to the dashboard harness via a 42 pin connector.

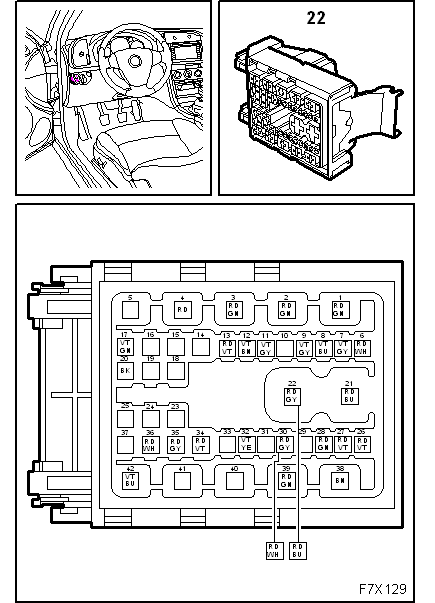

Fig 1: Identifying Instrument Panel Electrical Centre 22 (IPEC) Connector Pinouts
G05174120Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following current circuits are distributed by the electrical centre:

  1. Power supply +30, dashboard's electrical centre
  2. Power supply +15, dashboard's electrical centre
  3. Power supply +54, dashboard electrical centre. See POWER DISTRIBUTION .
