Crimp J40, engine harness, Trionic: Notes

WARNING: This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

Location:  Approximately 190 mm from crankshaft position sensor branching point towards the engine control module

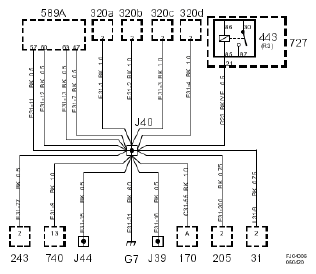

Fig 1: Crimp J40, Engine Harness, Trionic - Circuit Diagram
G05574061Courtesy of SAAB-SCANIA OF AMERICA, INC.
