Fuse 4, boot electrical centre 701, maxi fuse: Notes

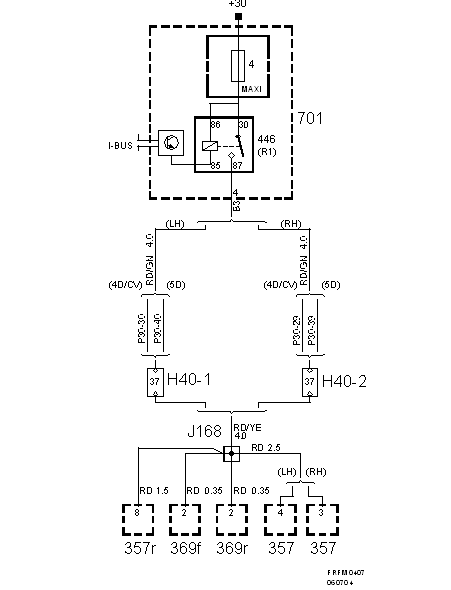

Fig 1: Fuse 4, Boot Electrical Centre 701, Maxi Fuse - Circuit Diagram

G05570850

Courtesy of SAAB-SCANIA OF AMERICA, INC.
