Connector H8-7

Location: grey connector on the side panel between the REC and the wheel housing

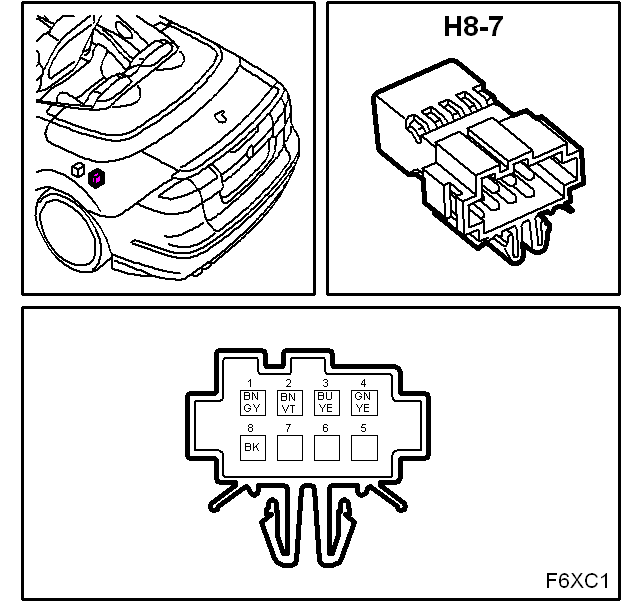

Fig 1: Identifying Connector H8-7

G05054512

Courtesy of SAAB-SCANIA OF AMERICA, INC.
