To remove

  1. Raise the seat and fold the backrest forward.
  2. Remove the backrest cover.
  3. Unplug the connector from the microswitch.
    Fig 1: Illustration For Step 3 And 5
    G05066101Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Reposition the backrest. Make sure it locks in position.
  5. Remove the screw and control unit from the seat frame.
  6. Remove the retaining clips from the cable.

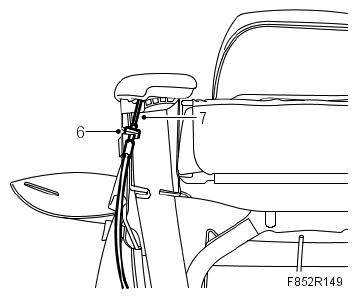

    Fig 2: Illustration For Step 6-7
    G05066102Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the cable from the control arm.
