Mass Airflow Sensor Replacement

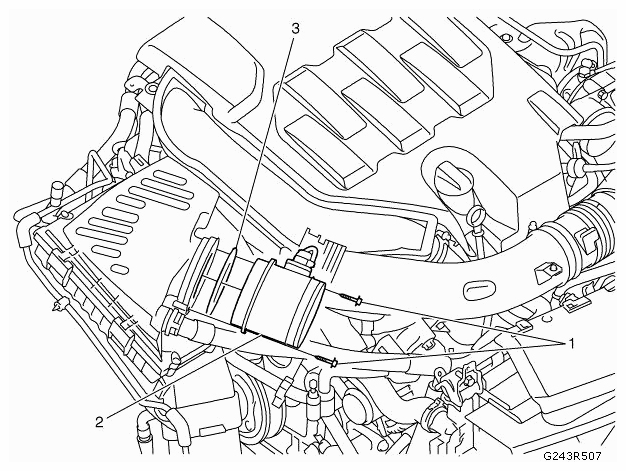

Fig 1: Identifying Mass Airflow Sensor
G09407824Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Loosen the air cleaner outlet duct clamp at the mass airflow sensor.
  2. Remove the air cleaner outlet duct from the mass airflow sensor.
1 Mass Airflow Sensor Fastener (Qty: 2)
Refer to FASTENER CAUTION .
Procedure
Disconnect the electrical connector.
Tighten
1, 5 Nm (13 lb in)
2 Mass Airflow Sensor
3 Mass Airflow Sensor Seal
