Disassembly Procedure

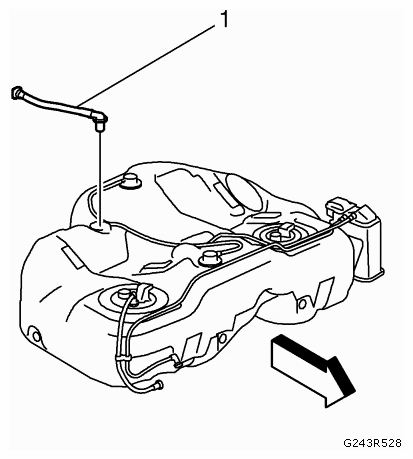

Remove the fuel tank filler vent pipe (1) from the fuel tank.

Fig 1: Identifying Fuel Tank Filler Vent Pipe
Courtesy of SAAB-SCANIA OF AMERICA, INC.

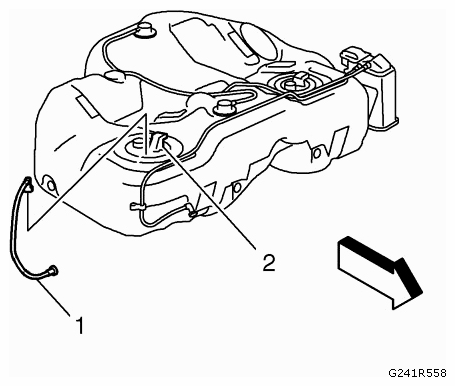

Disconnect the fuel feed pipe (1) from the fuel tank and the fuel tank fuel pump module (2). Refer to PLASTIC COLLAR QUICK CONNECT FITTING SERVICE .

Fig 2: Identifying Fuel Feed Pipe And Fuel Tank Fuel Pump Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.

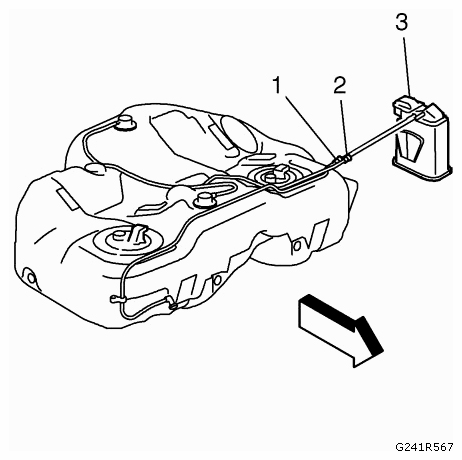

Disconnect the evaporative emission canister purge pipe (1) and the fuel tank vent pipe (2) from the evaporative emission canister (3). Remove the evaporative emission canister (3) from the fuel tank.

Fig 3: Identifying Evaporative Emission Canister Purge Pipe, Fuel Tank Vent Pipe And Evaporative Emission Canister
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Do NOT use impact tools. Significant force will be required to release the lock ring. The use of a hammer and screwdriver is not recommended. Secure the fuel tank in order to prevent fuel tank rotation.

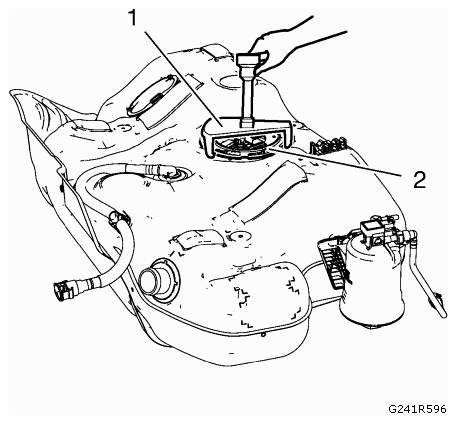

Install the EN-48279 remover/installer (1) to the fuel pump module lock ring (2).

Fig 4: Installing Fuel Pump Module Lock Ring
Courtesy of SAAB-SCANIA OF AMERICA, INC.

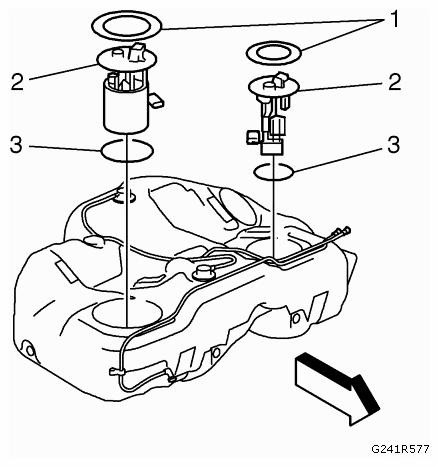

Using the EN-48279 remover/installer and a long breaker-bar, rotate the fuel pump module lock rings (1) in a counterclockwise direction in order to unlock the fuel pump module lock rings.

Fig 5: Identifying Fuel Pump Module Lock Rings
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the fuel tank fuel pump modules (2).
NOTE: Lift the fuel tank fuel pump modules up slightly.

Remove and discard the fuel tank fuel pump module O-ring seals (3).

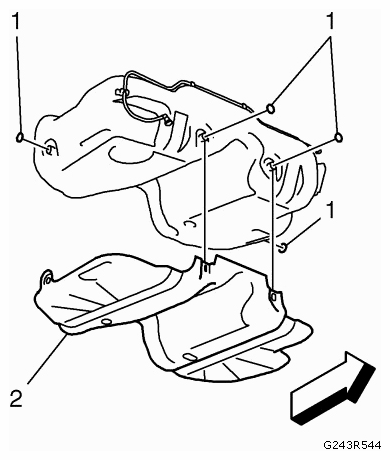

Remove the 4 fuel tank shield fasteners (1).

Fig 6: Identifying Fuel Pump Module Lock Rings
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the fuel tank shield (2).
