Front Side Door Window Switch Replacement

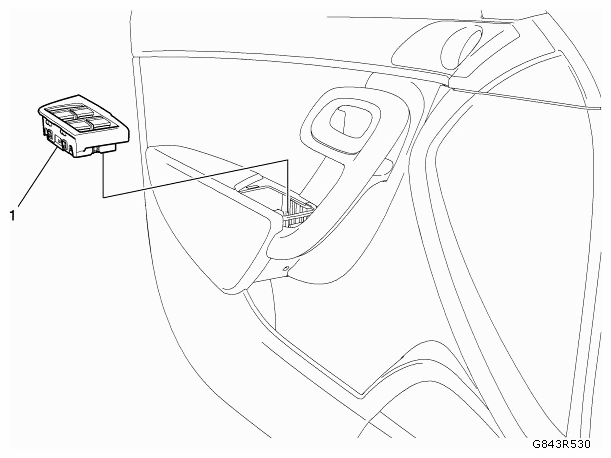

Fig 1: Identifying Front Side Door Window Switch Assembly
G09435639Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Front Side Door Window Switch Assembly
NOTE: Use a small flat-bladed tool to release the Front Side Door Window Switch from the rear retainer.
