Front View Camera Replacement (Base)

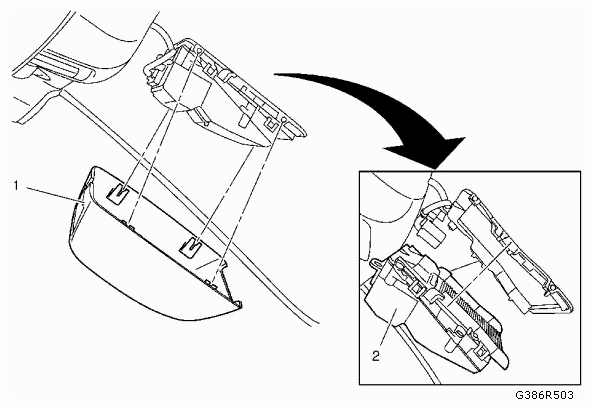

Fig 1: Identifying Front View Camera (Base)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Cover Front View Camera NOTE: Use a flat-bladed tool to remove the cover from the camera bracket.
2	Front View Camera Procedure  Disconnect the electrical connector. Release the front view camera out of the windscreen bracket. After the installation of the new camera, refer to VEHICLE DIRECTION ALERT ALARM WARNING MODULE PROGRAMMING AND SETUP .
