Power Moding Schematics

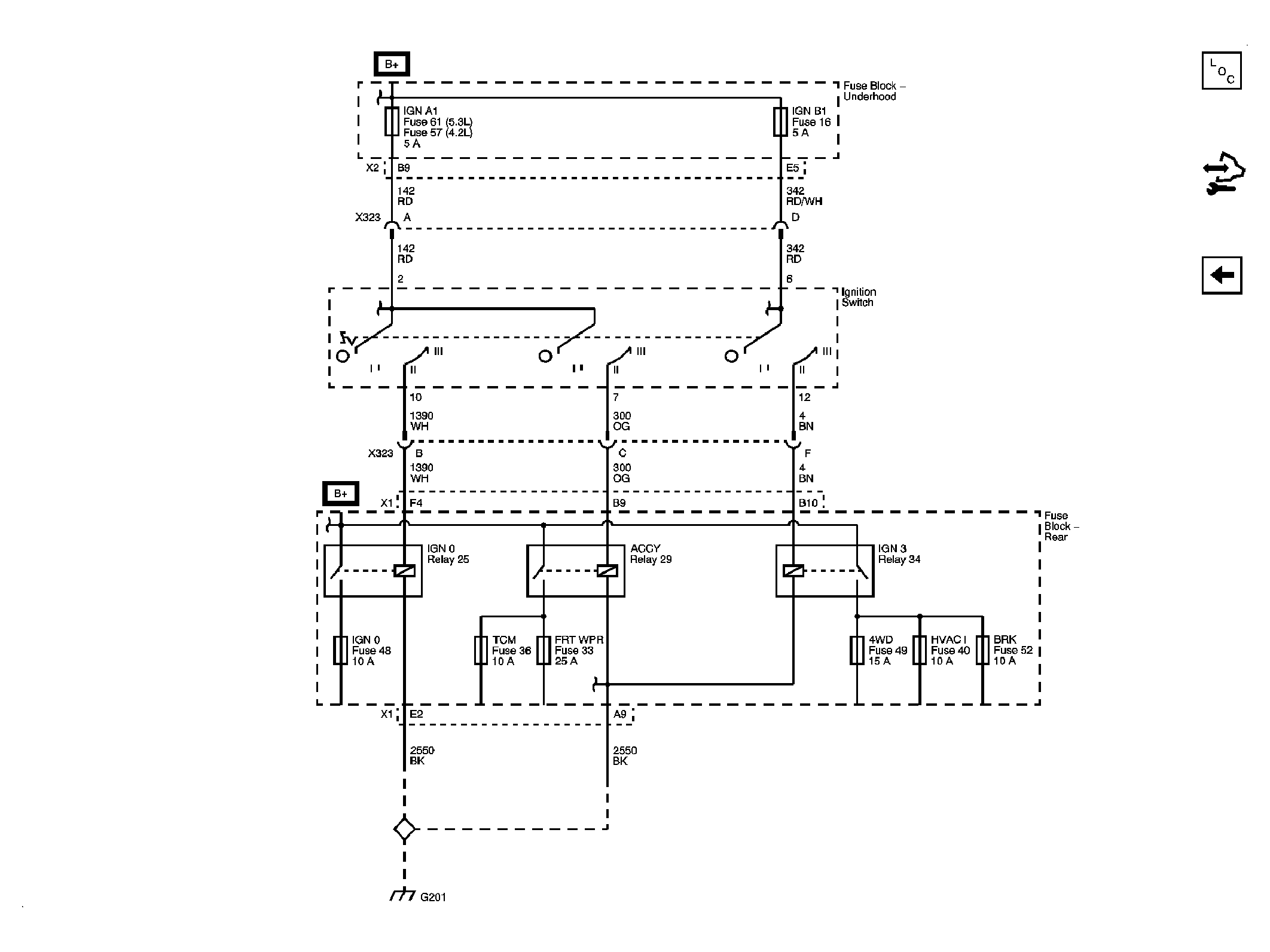

Fig 1: Ignition I/II/III, II, I/II Schematic

GM2082051

Courtesy of GENERAL MOTORS CORP.

Fig 2: Ignition II/III Schematic

GM2082054

Courtesy of GENERAL MOTORS CORP.
