Installation Procedure

  1. Locate the ignition switch to the console.

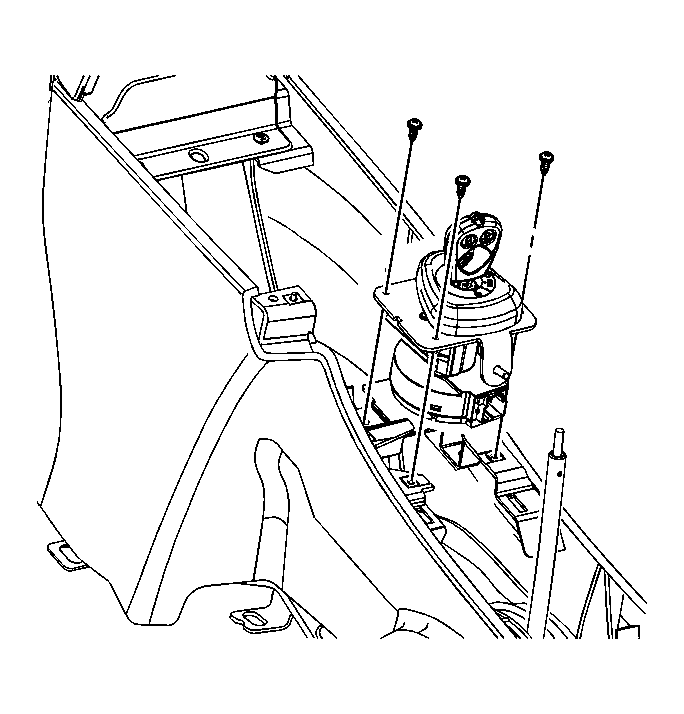

    Fig 1: Removing/Installing Ignition Switch
    GM1554774Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the screws securing the switch to the console.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  3. Connect the electrical connector.
  4. Install the shift lever bezel. Refer to Console Shift Lever Bezel Replacement .
