Trionic T7 Engine Management System 4-Cyl (Part 2/4): Notes

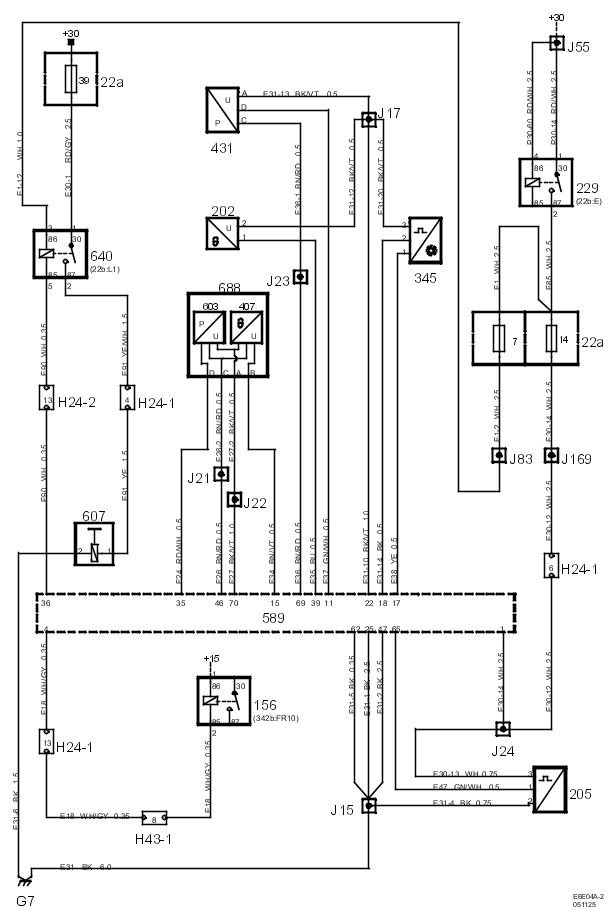

Fig 1: Schematic Diagram For Trionic T7 Engine Management System 4-Cyl (Part 2/4)

G05036916

Courtesy of SAAB-SCANIA OF AMERICA, INC.
