Grounding point G41S: Notes

WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

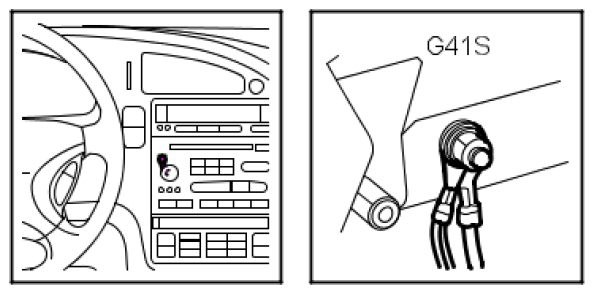

Fig 1: Identifying Grounding Point G41S
G05038147Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Grounding Point G41S - Circuit Diagram
G05038148Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left-hand grounding screw in center of knee protection bar (in cabin)
