Intake air sensor (688)

Location:

B207

on the charge air pipe

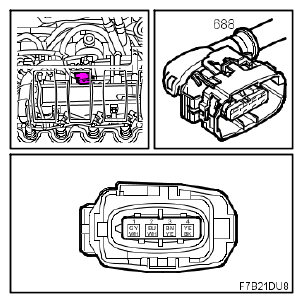

Fig 1: Identifying Intake Air Sensor (688) Location - B207

Courtesy of SAAB-SCANIA OF AMERICA, INC.

B284

on intake manifold next to air filter

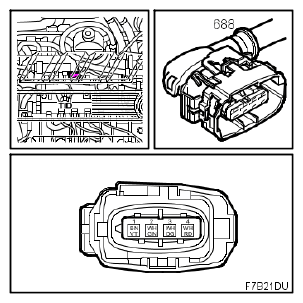

Fig 2: Identifying Intake Air Sensor (688) Location - B284

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Z19DT

in middle of induction pipe on top of engine

Fig 3: Identifying Intake Air Sensor (688) Location - Z19DT

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Z19DTH

in the center of the intake manifold on the rear of the engine

Fig 4: Identifying Intake Air Sensor (688) Location - Z19DTH

Courtesy of SAAB-SCANIA OF AMERICA, INC.
