Temperature up or down: Notes
WARNING: This page is about a different car, the 2006 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

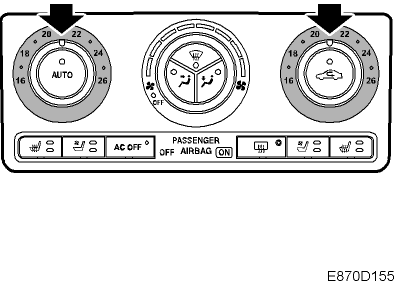

Selection of inside temperature for driver and passenger zone in steps of 1°C between 16°C and 27°C, alternatively between 60°F and 80°F. An LED on the temperature knob shows selected temperature.
When the ignition is switched on the following values are used:
Recommended setting is 21+/-3°C, alternatively 69+/-5°F.
With a value higher than 26°C, alternatively 80°F, HI is indicated with a red LED and the system is set in accordance with the following:
- fan speed 6 steps
- air distribution in defrost/floor position
- air mixture in full heat position for side in question. 100% is shown on the diagnostic tool.
- air recirculation in off position
With a value lower than 16°C, alternatively 60°F, LO is indicated with a blue LED (the passenger cannot select LO if the driver has not) and the system is set in accordance with the following:
- fan speed MAX, 8 steps
- A/C ON/OFF
- air distribution in panel position
- air mixture in full cold position for side in question, 0% is shown on the diagnostic tool
- air recirculation in on position, when A/C is active
