Home >> Saab >> 2007 >> 9-3 2.0T, 2D Convertible, Automatic >> Repair and Diagnosis >> Electrical >> Horns >> Lighting And Signaling Systems >> Interior Lighting >> Component Locator >> Switch panel (737a)

Switch panel (737a)

Location: on the dashboard panel next to the main instrument unit

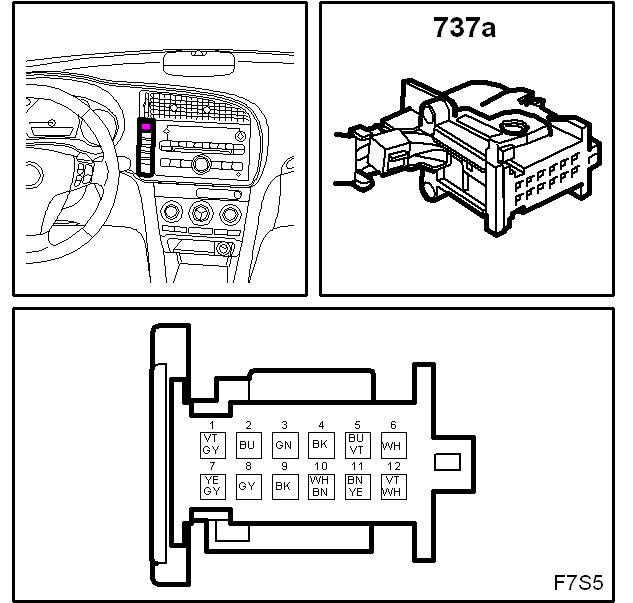

Fig 1: Identifying Switch Panel (737A)

G05176280

Courtesy of SAAB-SCANIA OF AMERICA, INC.
