Rear Fuse Block - Top View
Rear Fuse Block - Top View

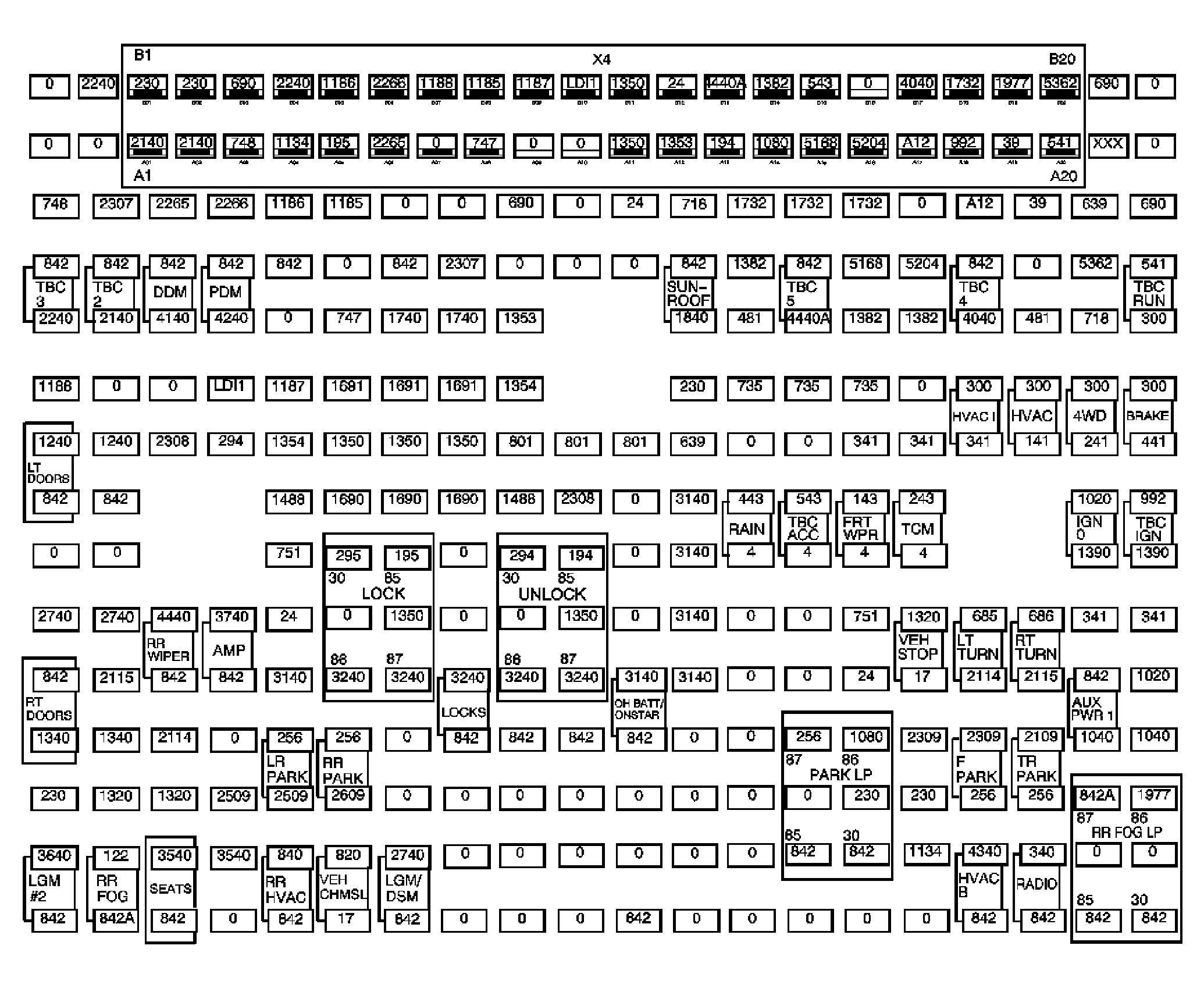

Fig 1: Rear Fuse Block - Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
