Brake light switch (29), T8: Connection

PINS DESCRIPTION

Pin No. Signal type Description
1 +30 Power supply from fuse 6.
2 Signal The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A).

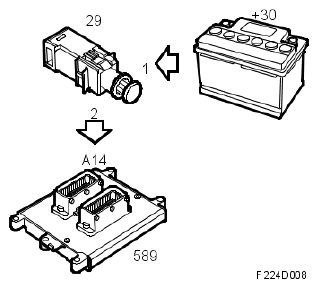

Fig 1: Identifying Close Switch Communication Diagram
G05052527Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Identifying Close Switch Circuit Diagram
G05052528Courtesy of SAAB-SCANIA OF AMERICA, INC.
