Engine Controls - 5.3L - Introduction
>>
Schematic and Routing Diagrams
>>
Fuel Hose/Pipes Routing Diagram
Fuel Hose/Pipes Routing Diagram

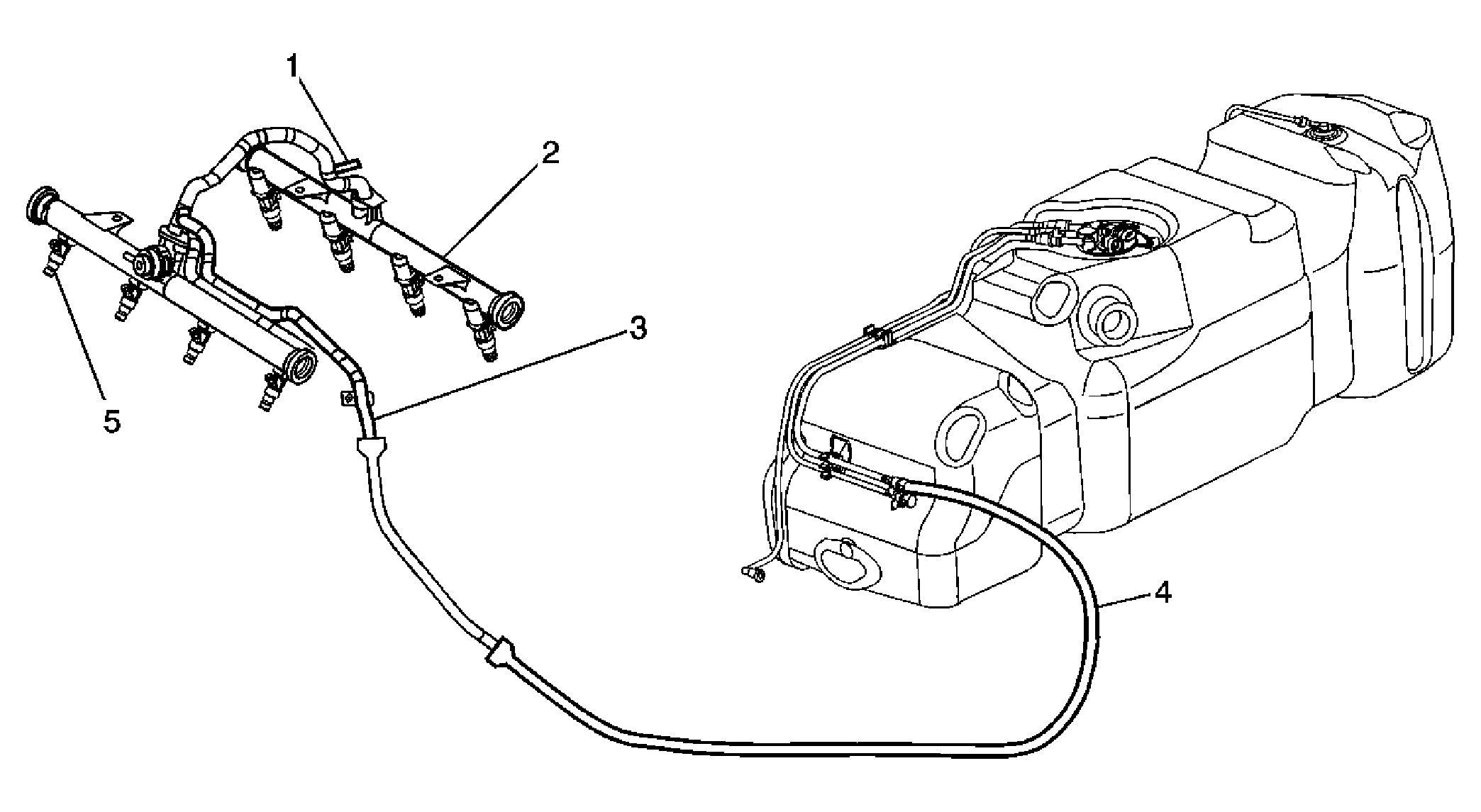

Fig 1: Fuel Hose/Pipes Routing Diagram (Single Fuel Tank)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Fuel Pressure Service Connection
2
Fuel Injector Rail
3
Fuel Rail Feed Pipe
4
Fuel Feed Hose
5
Fuel Injector
