Power supply: Wiring diagram

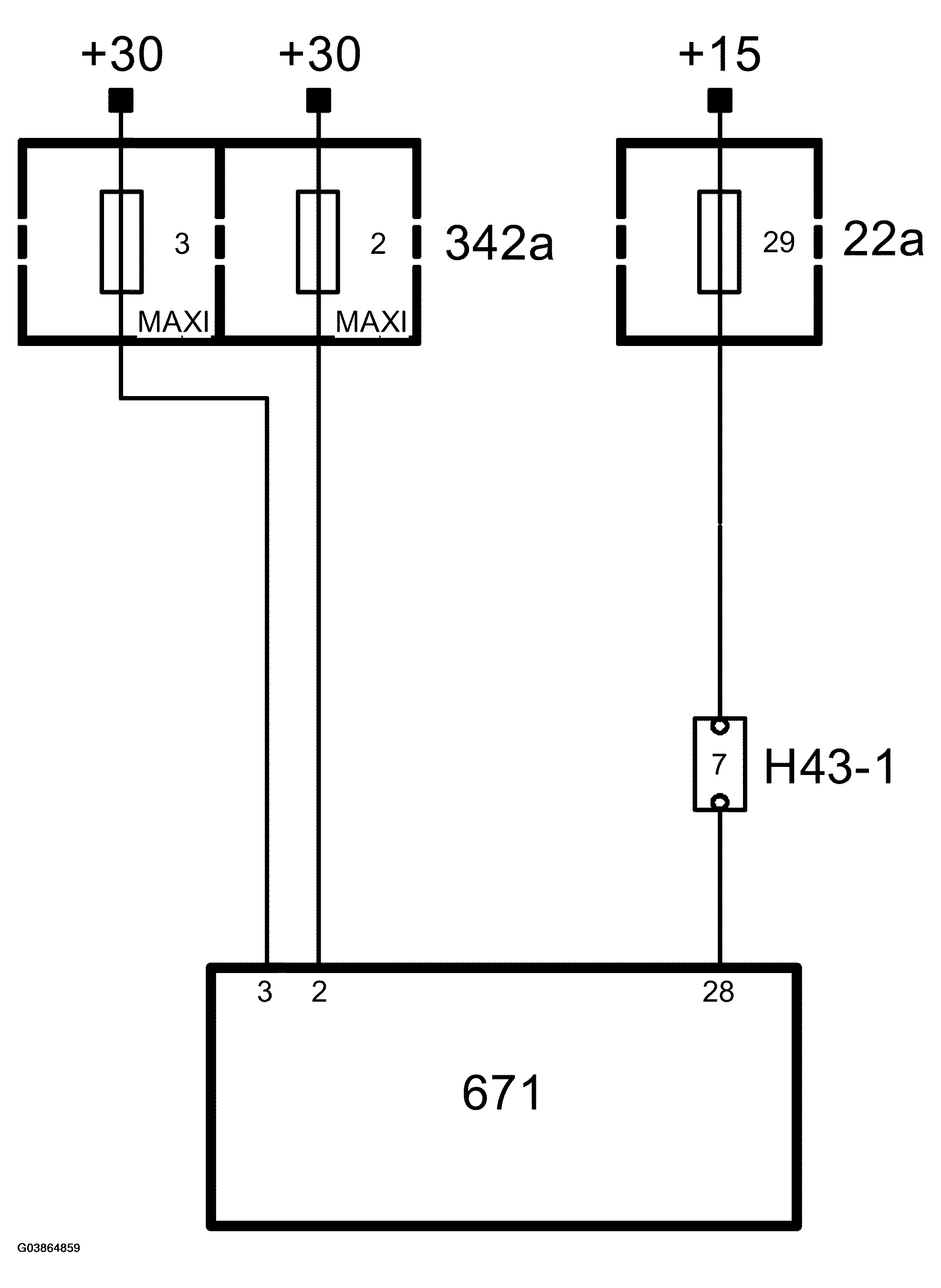

Fig 1: Battery Voltage Circuit Diagram

G03864859

Courtesy of SAAB-SCANIA OF AMERICA, INC.
