DTC C1381: Wheel Sensor Rear Left Signal Incorrect: Notes

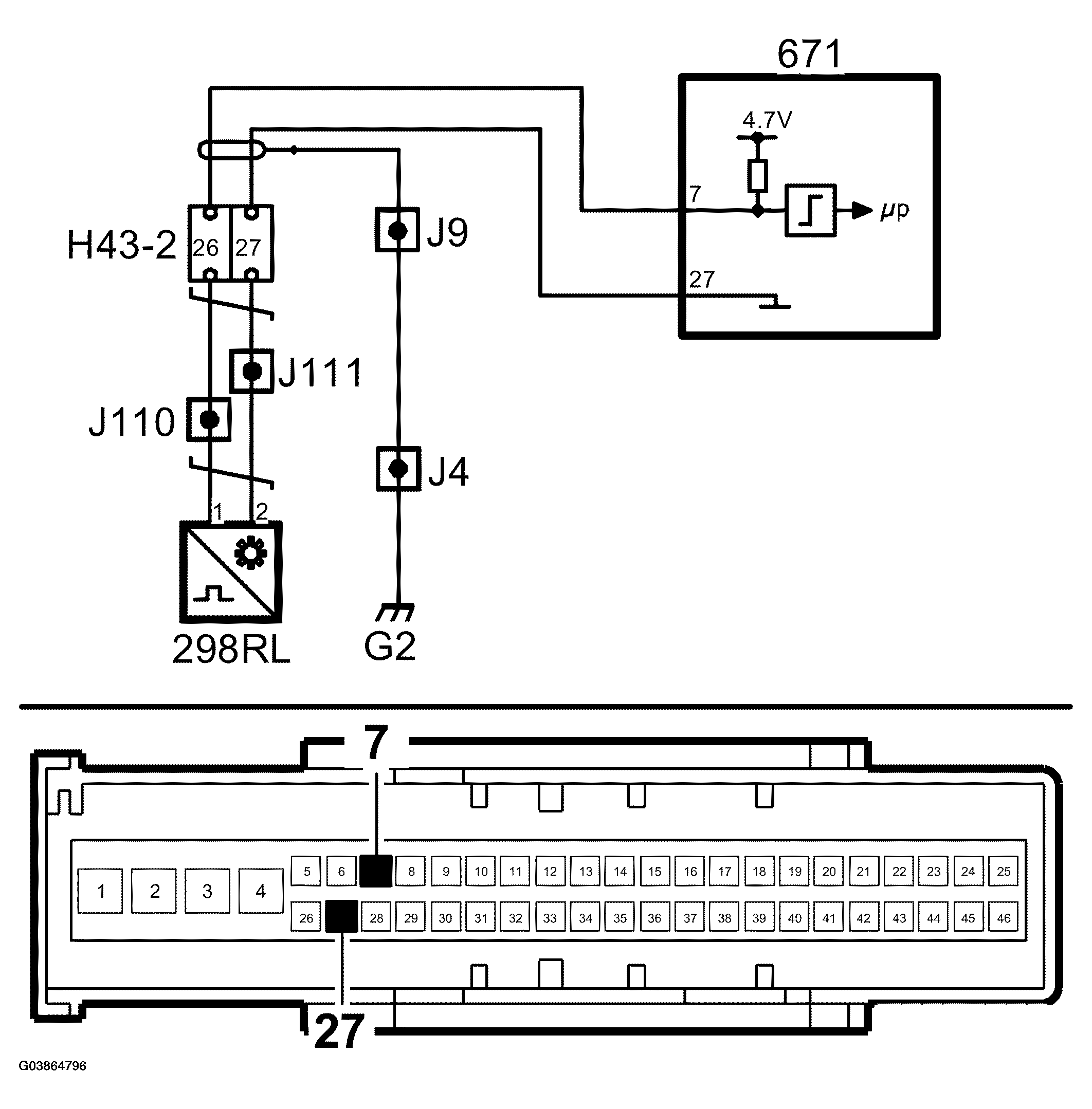

Fig 1: C1381 Wheel Sensor Rear Left Signal Incorrect Circuit Diagram

G03864796

Courtesy of SAAB-SCANIA OF AMERICA, INC.
