DTC C0186: Lateral Accelerator Sensor Faulty signal: Notes

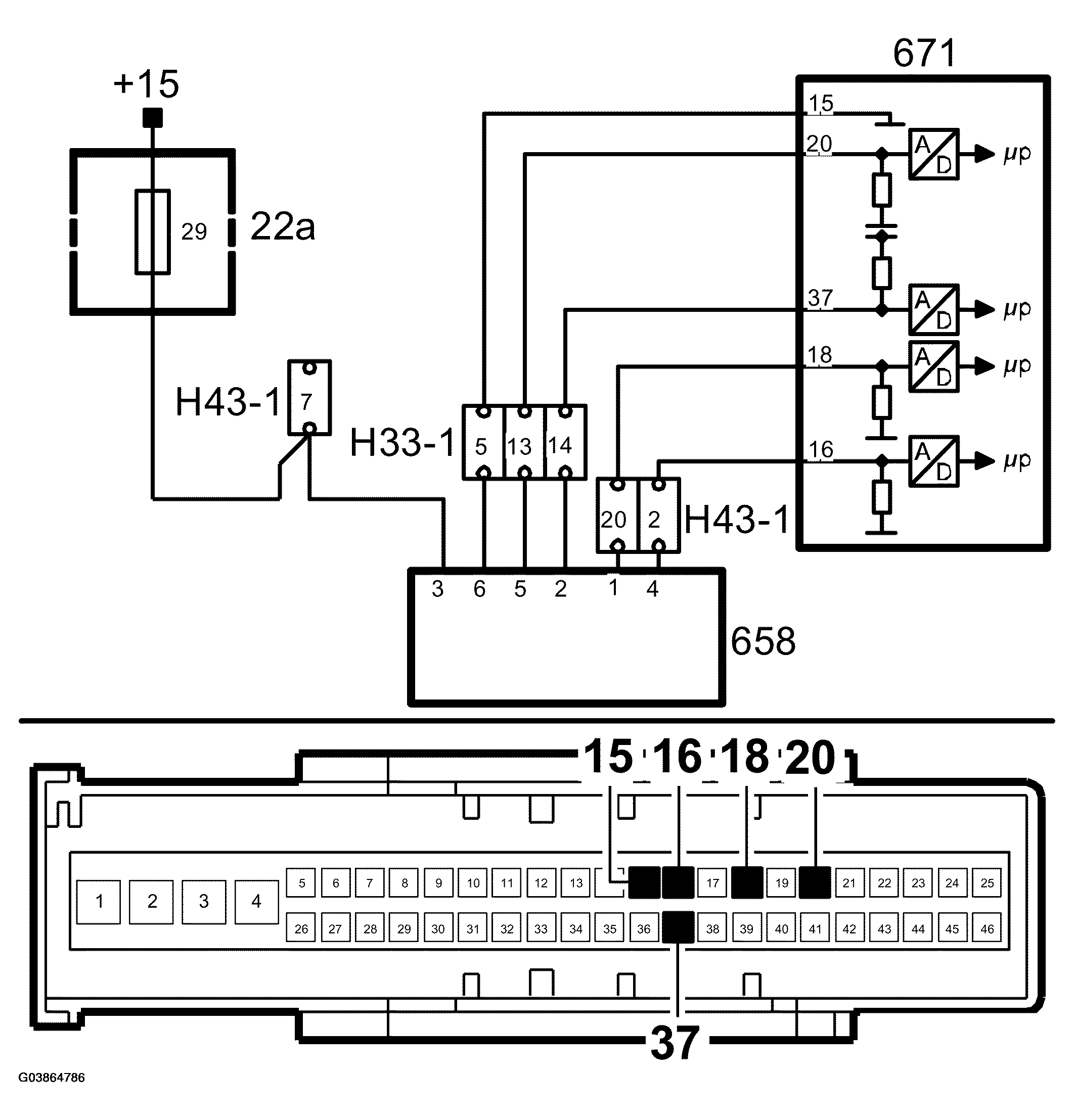

Fig 1: C0186 Lateral Accelerator Sensor Circuit Diagram

G03864786

Courtesy of SAAB-SCANIA OF AMERICA, INC.
