To remove

  1. Open the tailgate.

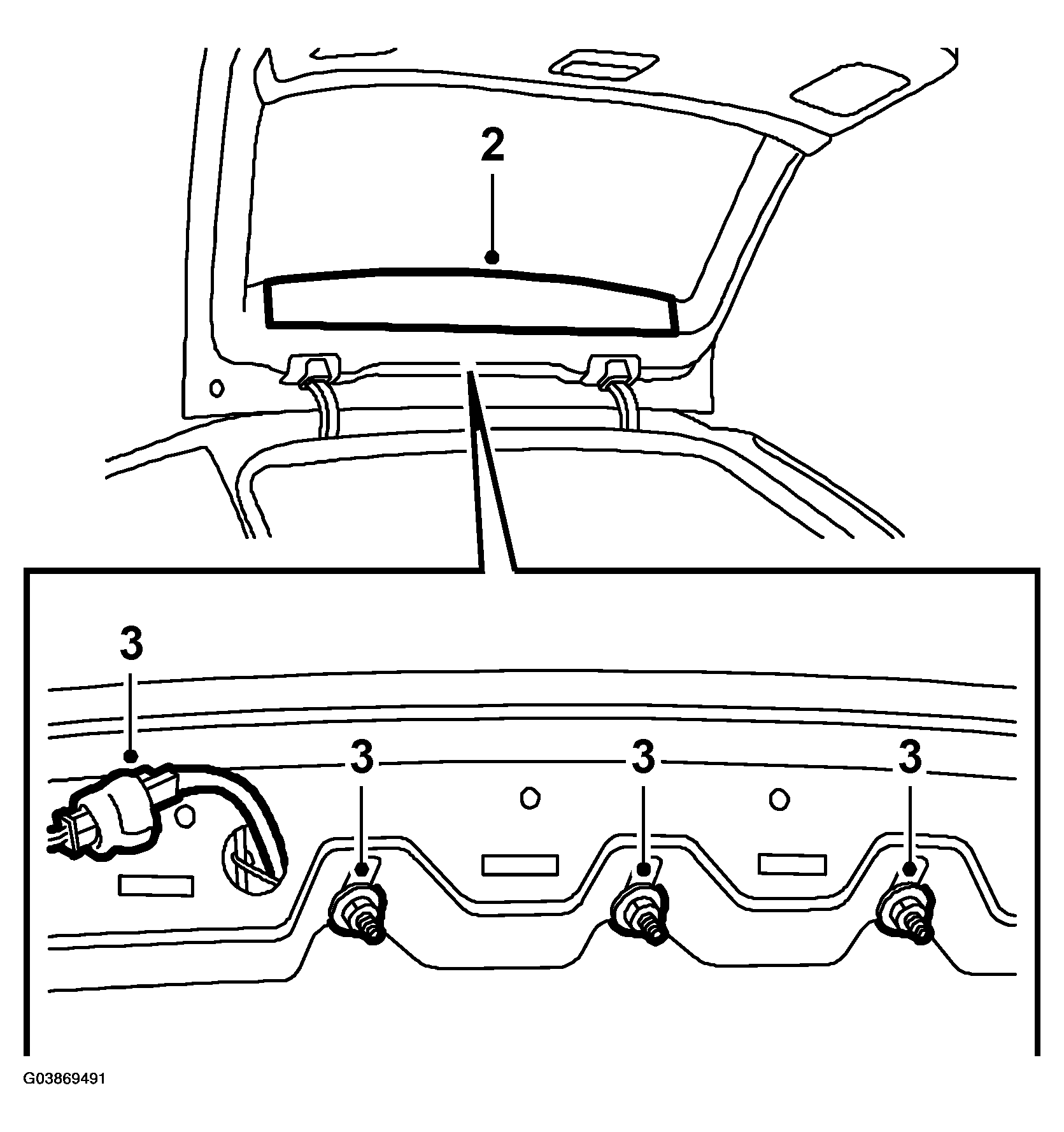

    Fig 1: Illustration For Step 2-3
    G03869491Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the glass cover plates.
  3. Unscrew the nuts securing the brake light and unplug the connector.
  4. Unscrew the screws and remove the circuit board with LEDs.

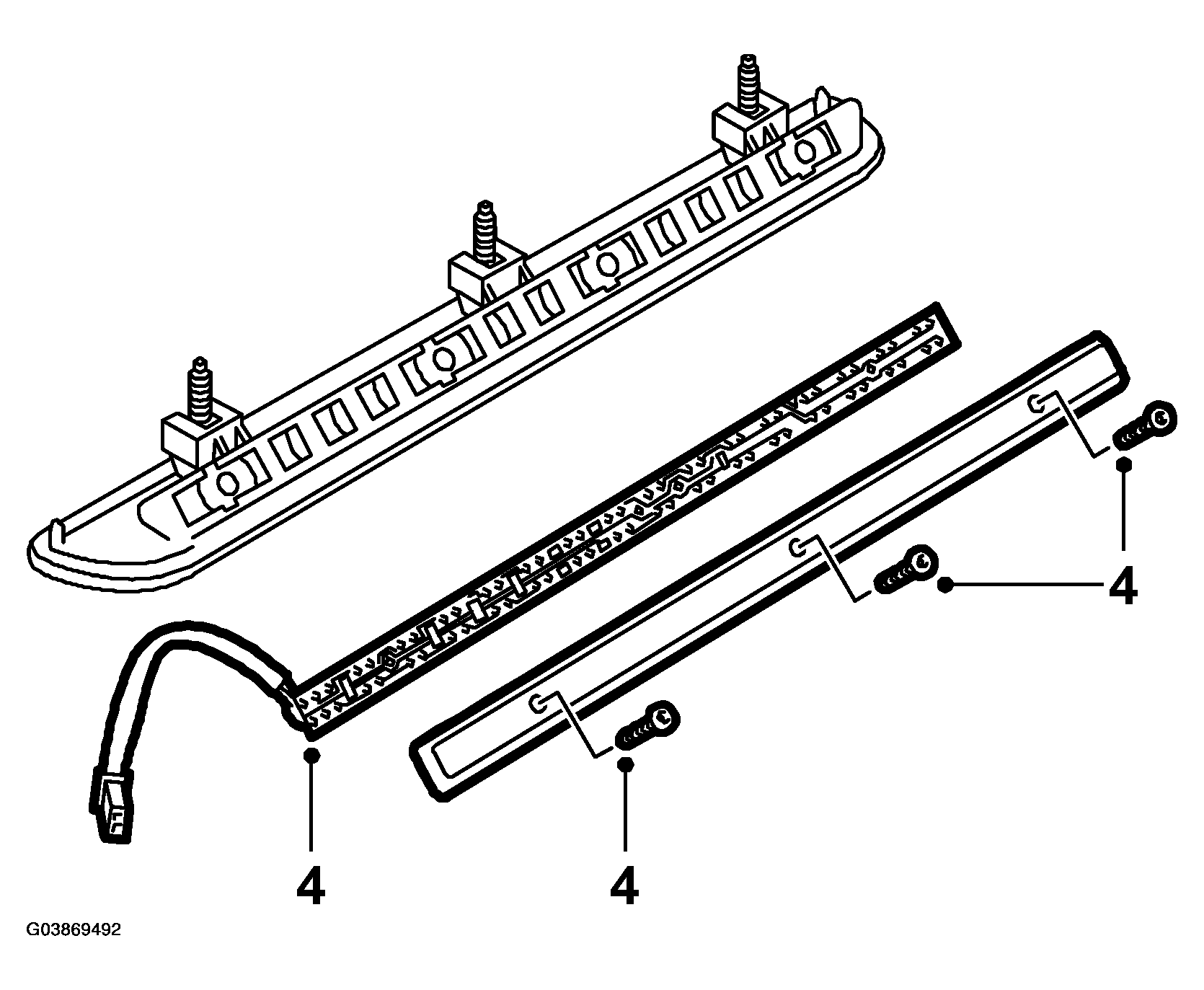

    Fig 2: Illustration For Step 4
    G03869492Courtesy of SAAB-SCANIA OF AMERICA, INC.
