Connection, Z18XE petrol engine

The compressor clutch is activated through a feed from relay 156 in the engine bay main fuse box (342) and is connected to ground through grounding point G2.

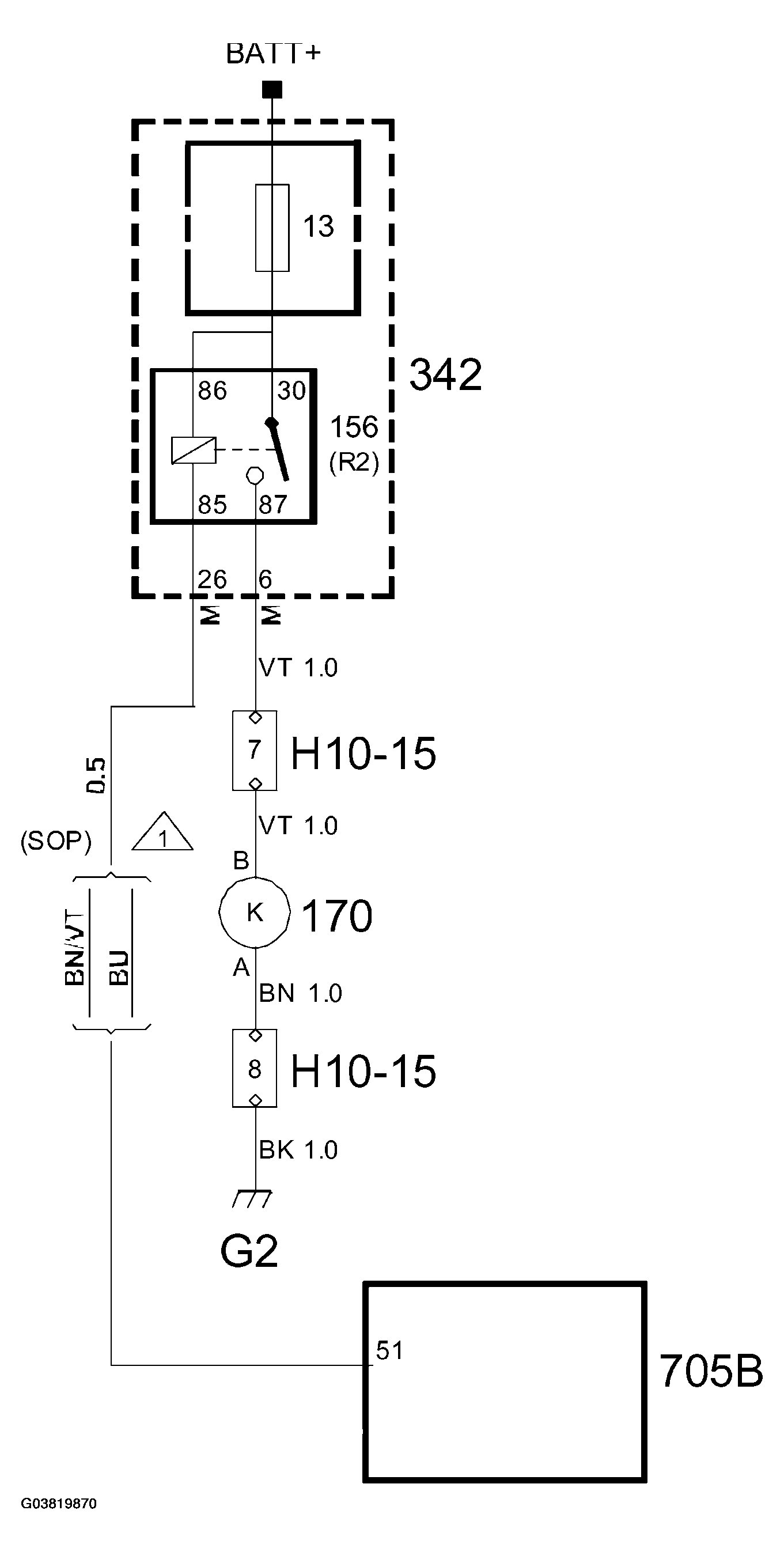

Fig 1: Identifying Connection Z18XE Petrol Engine
G03819870Courtesy of SAAB-SCANIA OF AMERICA, INC.
