Car does not start.: Notes

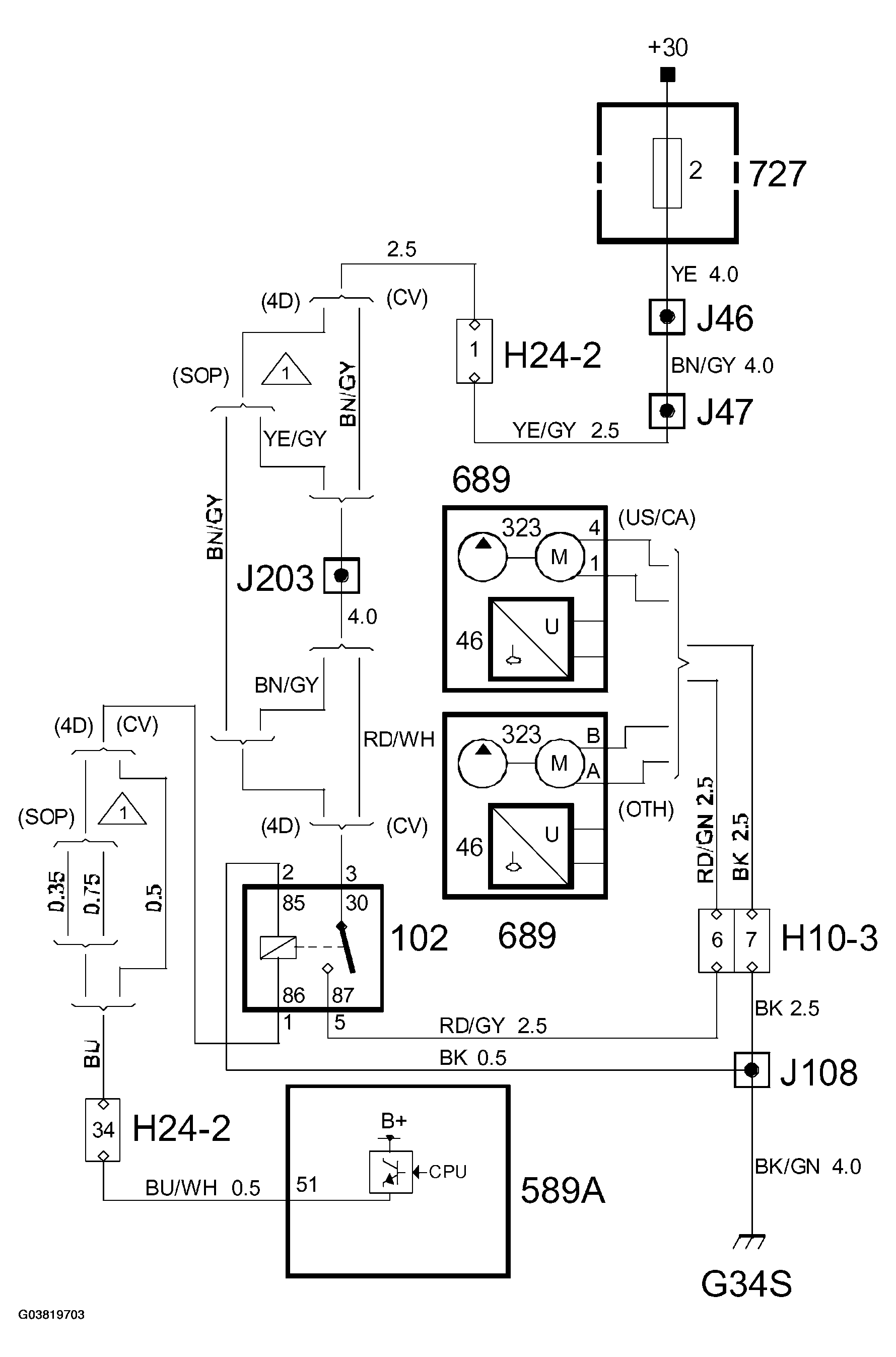

Fig 1: Identifying Circuit Diagram - Car Does Not Start

G03819703

Courtesy of SAAB-SCANIA OF AMERICA, INC.
