Fuse 6, instrument panel electrical centre 22: Notes

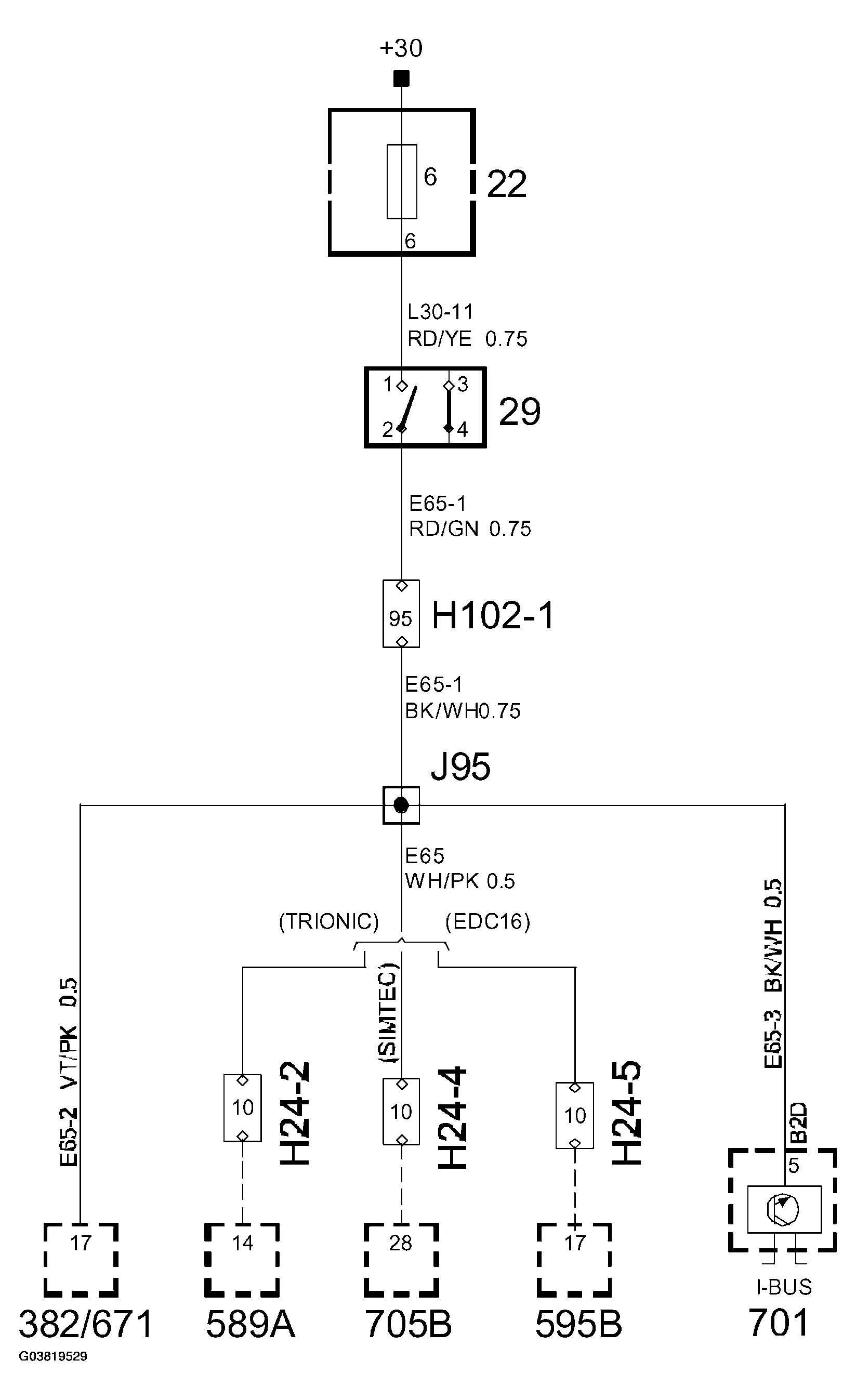

Fig 1: Fuse 6 Circuit

G03819529

Courtesy of SAAB-SCANIA OF AMERICA, INC.
