Connector H24-2 (T8)

Location: Grey connector in front of battery on side of left structural member

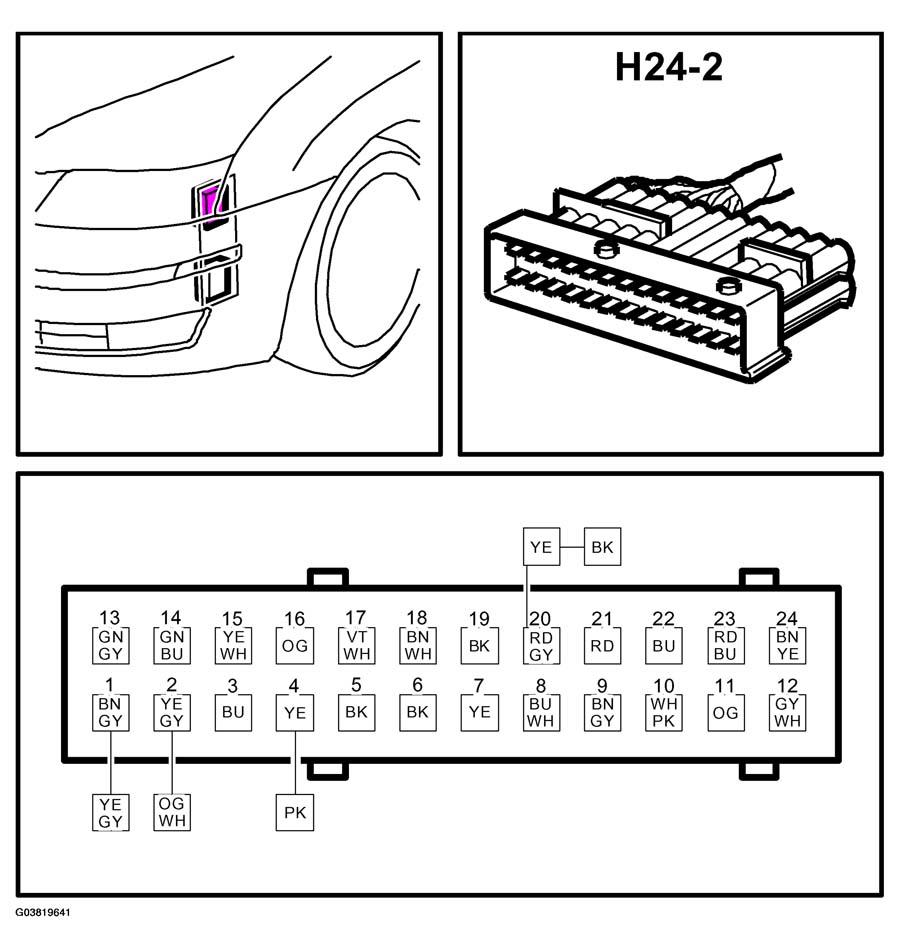

Fig 1: Identifying Connector H24-2 (T8)

G03819641

Courtesy of SAAB-SCANIA OF AMERICA, INC.
