Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Adjustment / Replacement >> Pressure monitor, engine oil (44) >> To remove

To remove

  1. Remove the upper engine cover.

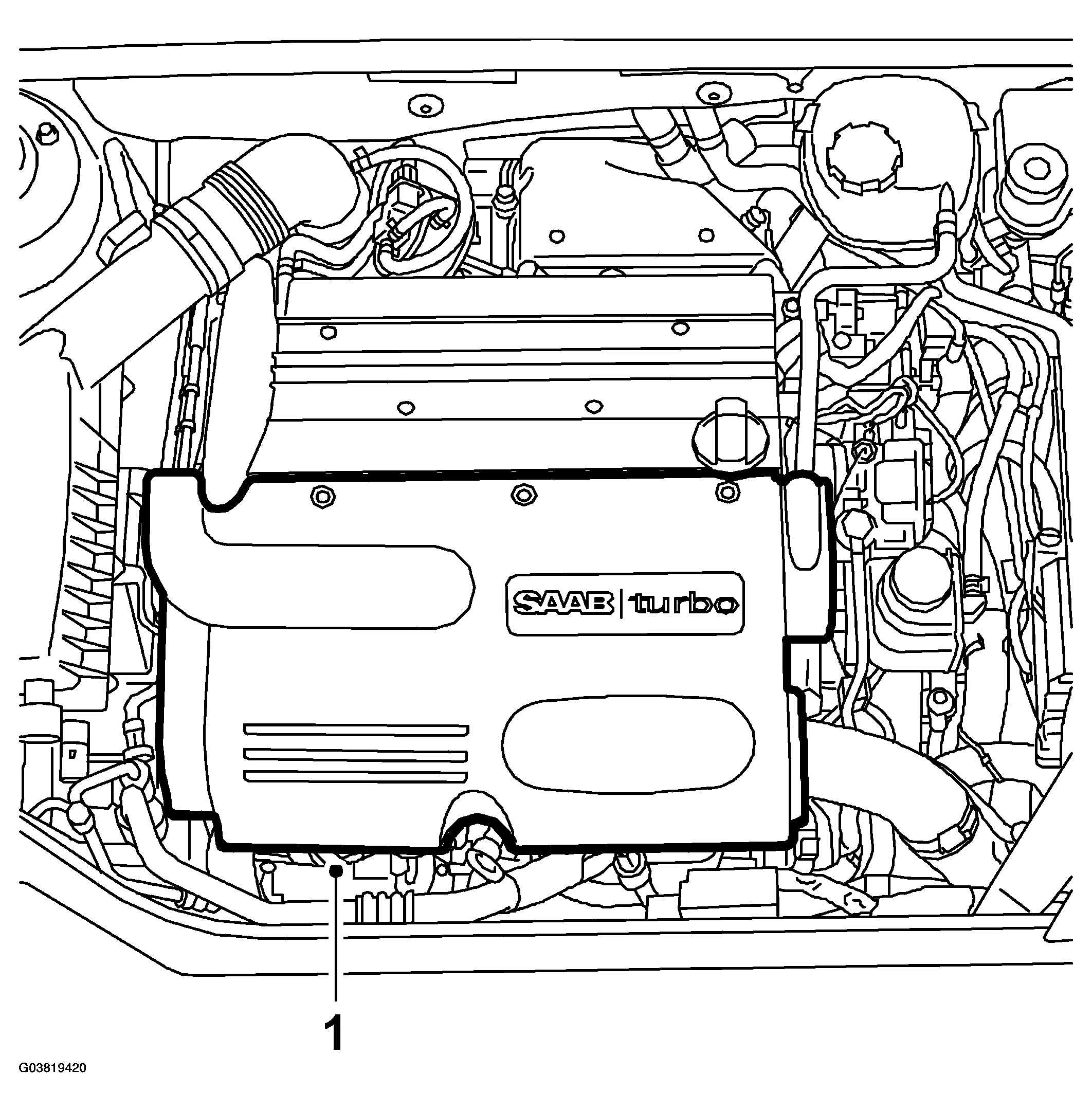

    Fig 1: Removing Upper Engine Cover
    G03819420Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Place a receptacle to collect spilled oil.
  3. Unplug the connector.

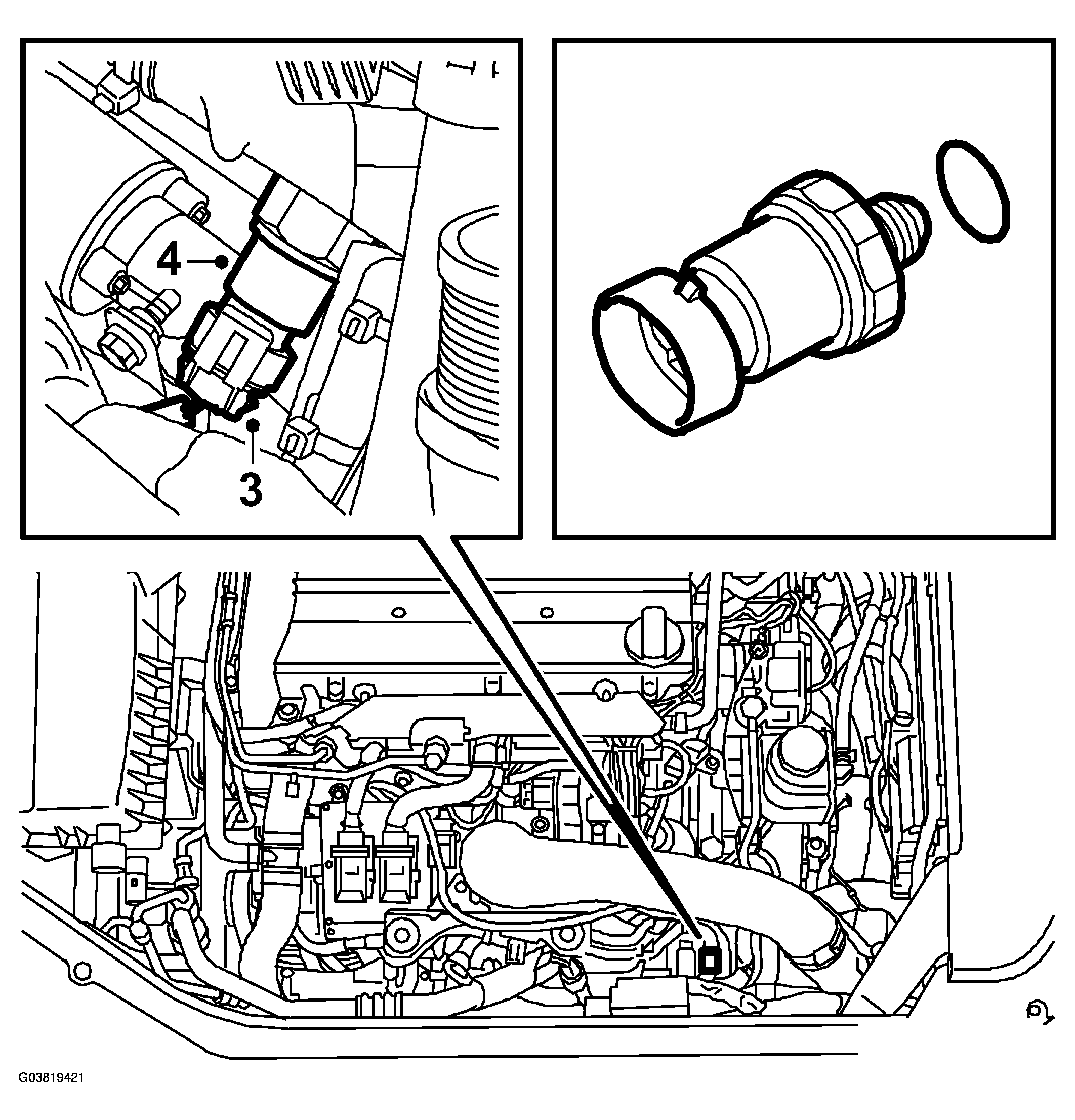

    Fig 2: Illustration For Step - 3-4
    G03819421Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the oil pressure switch. Tool 83 95 187 (27 mm fitting).
