To fit

  1. Fit the oil level sensor to the oil pan.

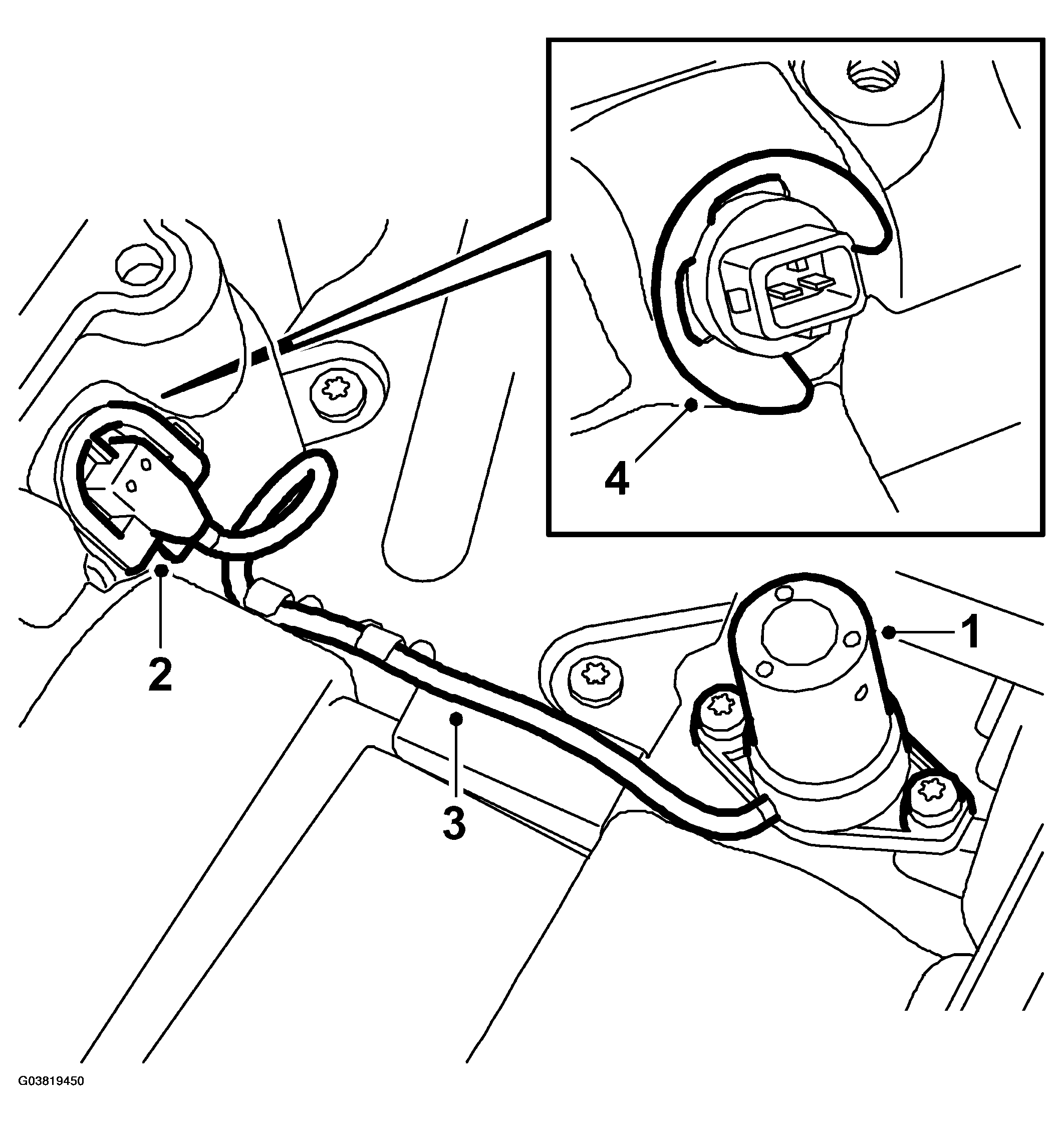

    Fig 1: Illustration For Step - 1-4
    G03819450Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the connector with a new O-ring sparingly lubricated with Vaseline.
  3. Check the location of the cables and that they are secured properly, adjust as necessary.
  4. Fit the retaining clip.
  5. Fit the oil sump as described in OIL SUMP .
