Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Adjustment / Replacement >> Intake manifold sensor (688) >> To fit

To fit

  1. Fit the sensor with a new O-ring sparingly lubricated with Vaseline.

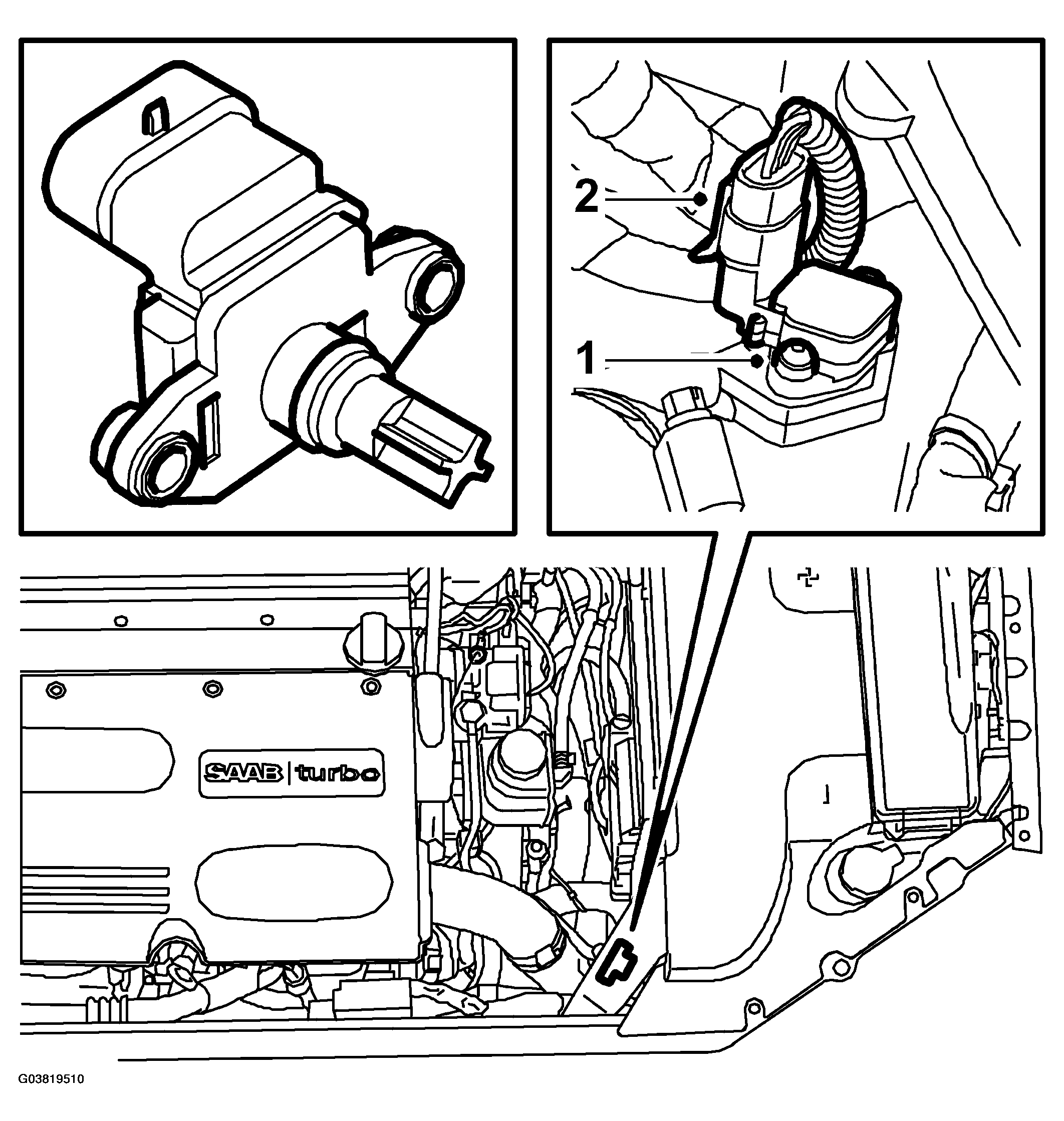

    Fig 1: Illustration For Step - 1-2
    G03819510Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
