Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Adjustment / Replacement >> Crankshaft position sensor (345) >> To remove

To remove

  1. Remove the upper engine cover.

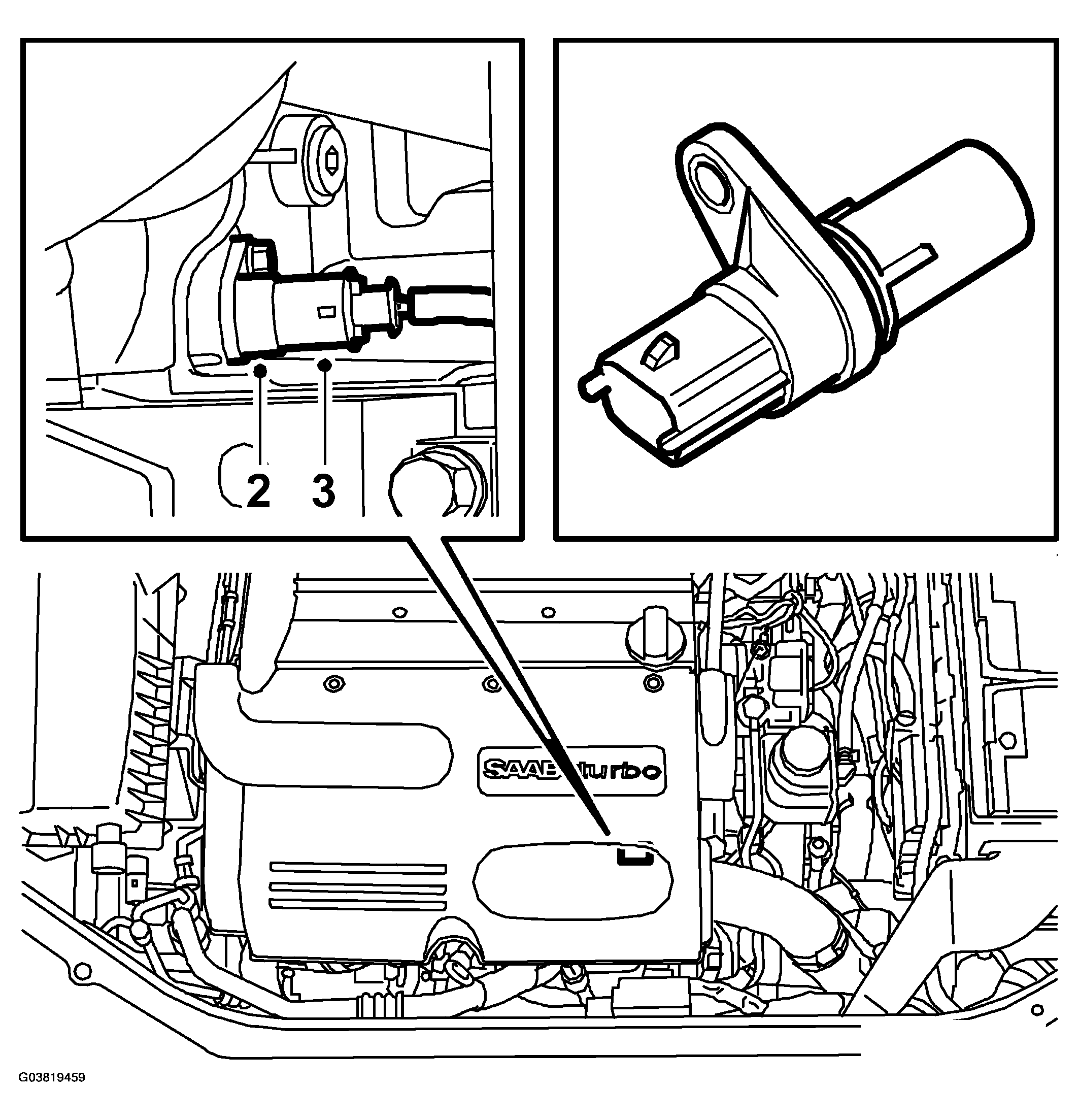

    Fig 1: Illustration For Step - 2-3
    G03819459Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the crankshaft position sensor.
  3. Unplug the crankshaft position sensor connector.
