Fuse 20, engine bay main fuse box 342: Notes

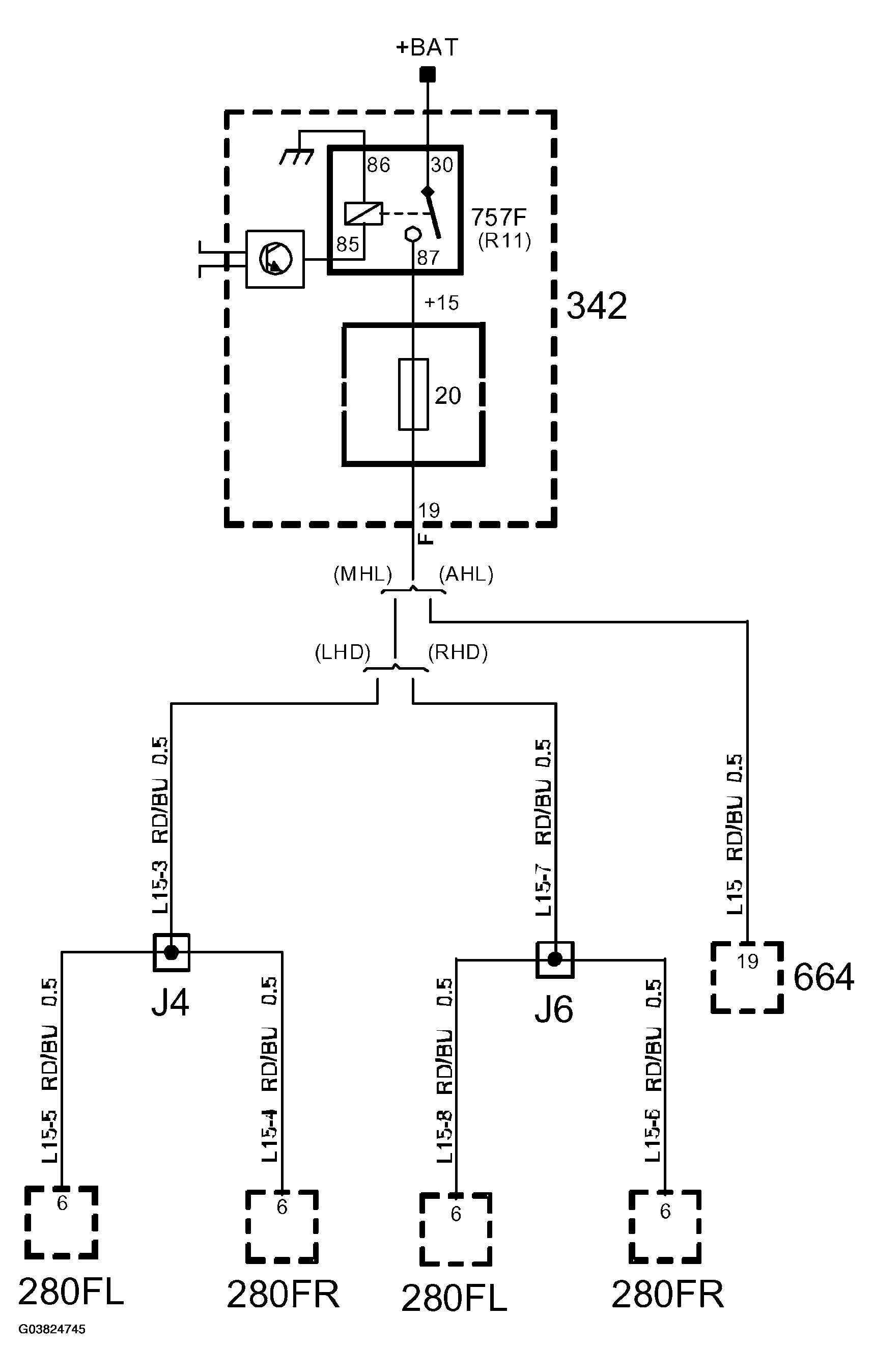

Fig 1: Fuse 20, Engine Bay Main Fuse Box 342 Circuit

G03824745

Courtesy of SAAB-SCANIA OF AMERICA, INC.
