Control module, Trionic, B207, switch A (589A)

Location:  engine front

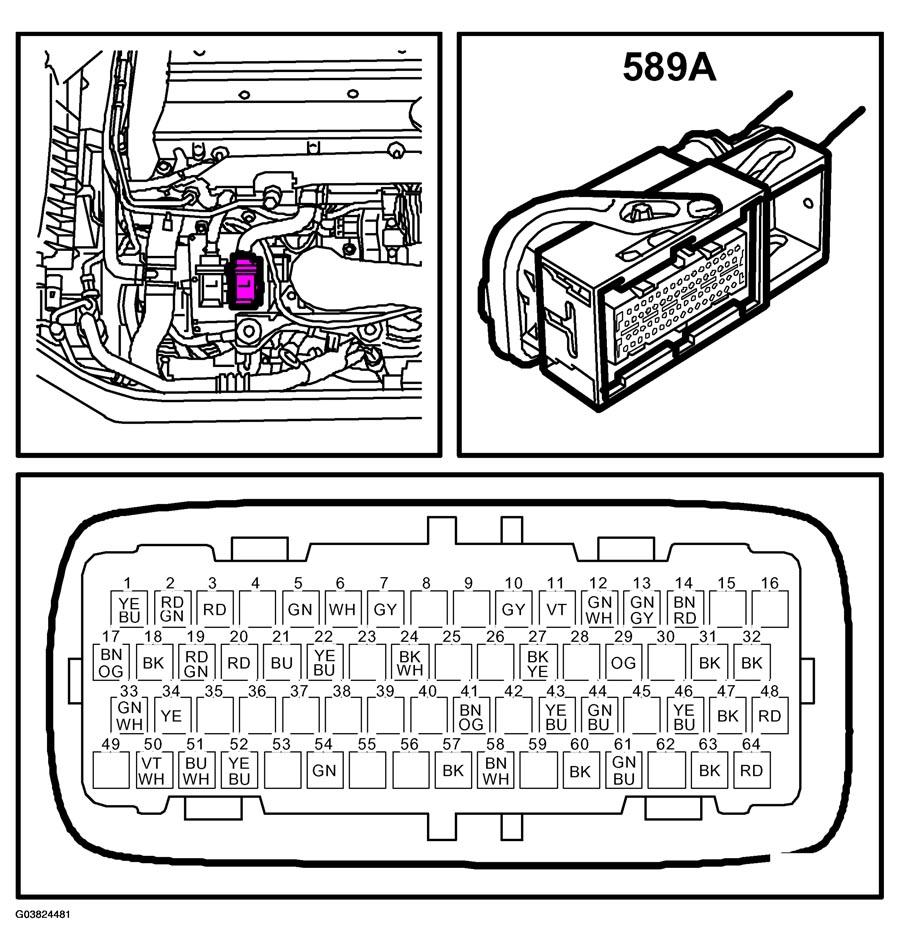

Fig 1: Identifying Trionic B207 Control Module Switch A Connector Pinouts And Location (589A)
G03824481Courtesy of SAAB-SCANIA OF AMERICA, INC.
