Control module, seat (357k)

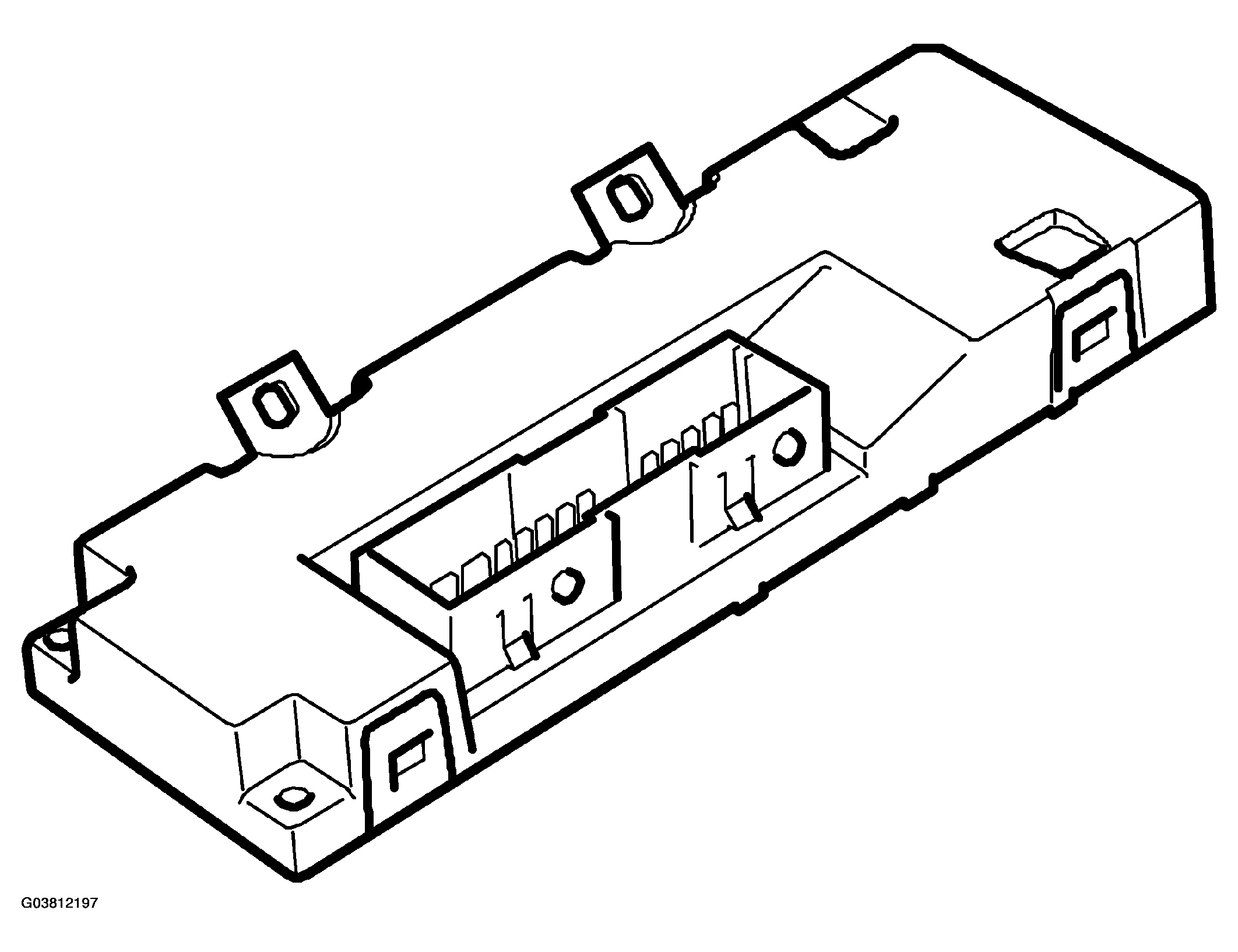

Fig 1: Identifying Control Module Seat (357K)

G03812197

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SEAT CONTROL MODULE SPECIFICATION

Power supply +30	59 pin
Ground	58 pin
