Detailed description: Display

The entertainment unit uses the SID module and the control panel display for displaying the selected radio station or other player information such as the selected CD.

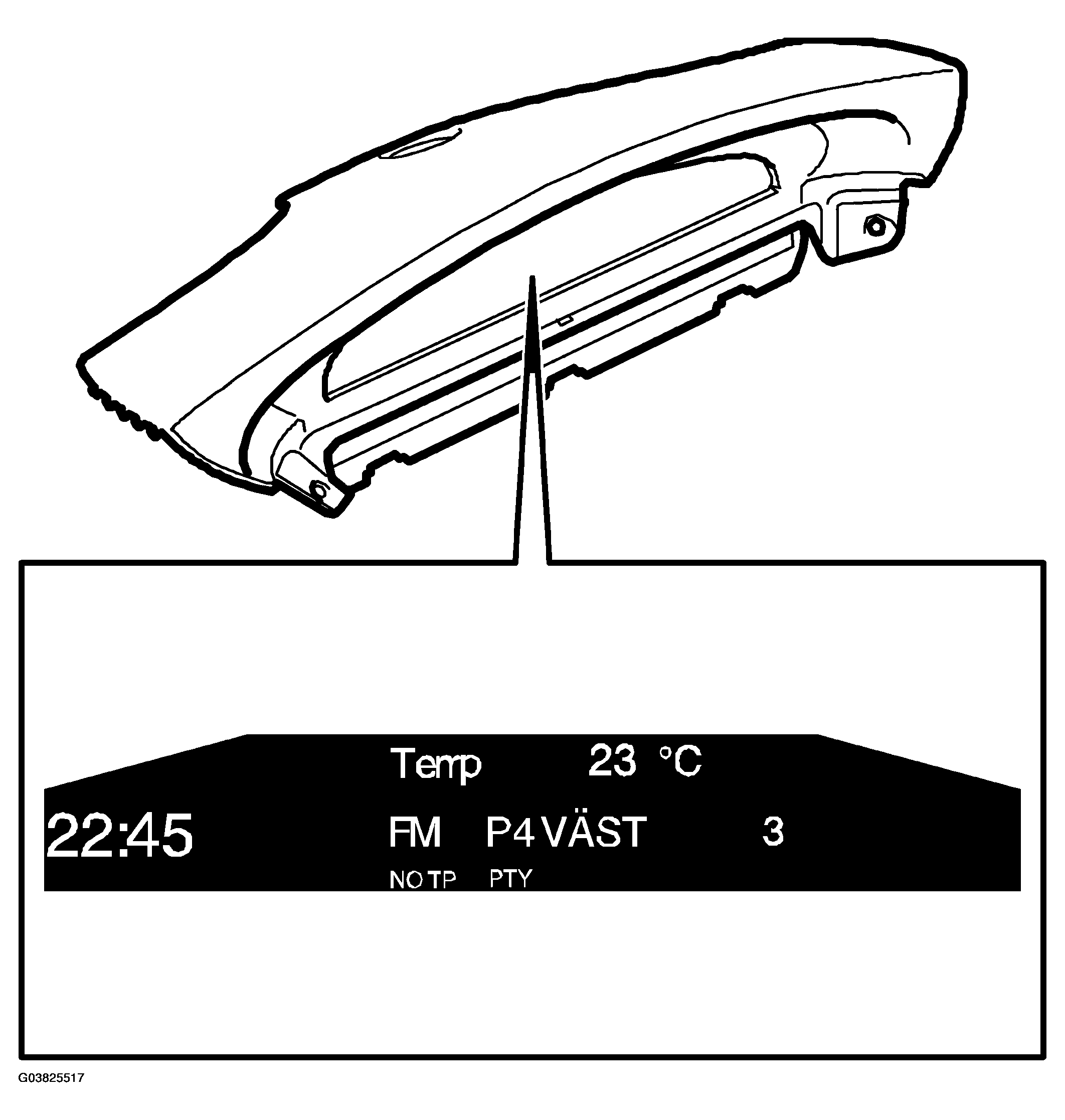

Fig 1: Identifying Control Panel Display
G03825517Courtesy of SAAB-SCANIA OF AMERICA, INC.
